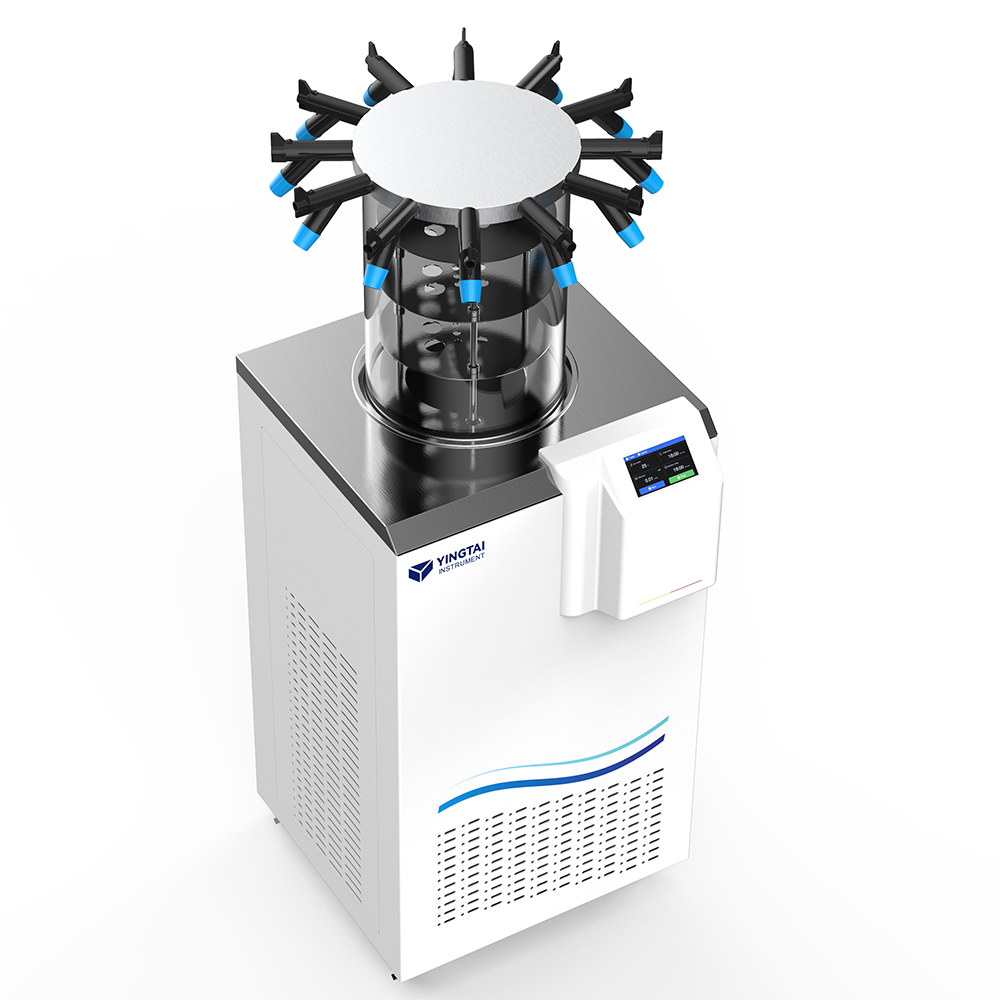

9-12L Freeze Dryer/ Lyophilizer

Freezer Dryer, 9-12L water capturer
  • BD1-9, BD2-9, BD1-12,BD2-12

  • Yingtai

Availability:
Quantity:

Features:

Large capacity water capture freeze dryer

Tabletop medium-sized freeze dryer

Suitable for drying medium-sized samples

Apply to drying in laboratories such as cosmetics, fermentation broth, soil, materials, etc.

product description:

9kg-12kgs water capture capacity, which can meet the needs of laboratories with large freeze-drying requirements for water capture capacity

-70°C/-90°C ultra-low temperature cold trap, which can capture lower temperature organic solvents

Unique refrigeration technology, the cooling time of the cold trap from the start of the low-temperature refrigeration system to the target value is ≤3 minutes

Direct-capture large coil cold trap, higher efficiency, better ice capture effect

Hemispherical cold trap bottom surface is more conducive to the discharge of condensed water

The cold trap and condenser coil are all Teflon anti-corrosion treatment, which can freeze-dry a large amount of ultra-low temperature organic solvents

One-click hot gas defrost, with defrost compressor protection program.

Large flat flange silicone seal, permanently no need to apply any auxiliary sealing silicone grease

High-precision ultra-wide width detection, vacuum sensor with full-range automatic temperature compensation, making vacuum display more accurate

The cavity vacuum can be read and controlled accurately, and the vacuum control accuracy is ≤0.1mbar

Removable sample shelf with dedicated holes for centrifuge tube placement, making placement and height adjustment easier

Configuration of various types of chambers and T-frames can fully satisfy users’ sample placement

Optional configuration of eutectic point detection system and data export system.

The vacuum pump and sample placement chamber can be combined at will according to user needs, making the configuration more flexible and convenient


Techinical parameter


9-12L Floor tabletop and floor standing one for lab usage

Tabletop

BD1-9

BD2-9

BD1-12

BD2-12

Floor standing

BH1-9

BH2-9

BH1-12

BH2-12

Water Capture capacity

9L

12L

Cold trap temperature

-70 C

-90℃

-70C°

-90℃

Cold trap volume

15L

20L

Freeze dried chamber

High permeability organic glass/multi manifold external valve/stainless steel chamber

Sample shelf

Stainless steel φ 260mm/485mm. 3-10 layers/optional

●Electric heating/manual capping/optional

Vacuum pump

Extreme vacuum 4 * 10-4mbar, pumping capacity ≥ 200L/can be equipped with various types of pumps

Oil mist filter

Standard configuration

Vacuum pump connection pipe

Single forming stainless steel flexible pipe DN16  ISO-KF L-1.5m

anti-corrosive treatment

Cold trap, condensing coil/all equipped with PTFE anti-corrosion treatment as standard. Freeze-drying organic solvents

External valve

1-48 ports/optional

Eutectic point judgment

Support/Optional

Data audit trail

Support/Optional

Power

0.9kw

1.5kw

1kw

1.6KW

Size

390*468*448mm

480*498*487mm
