TG16E
Yingtai
Availability: | |
---|---|
Quantity: | |
TG16E Technical Parameter:
Max. Speed | 16000rpm |
Max. RCF | 19040×g |
Max. Capacity | 6×10ml |
Time Range | 0~99min |
RPM/RCF Convert | Yes |
Noise (dB) | ≤ 65 |
Acc/Dec | 10 Kinds |
Speed Accuracy | ±20r/min |
Voltage(V/Hz) | AC 220V/110V 50HZ/60HZ |
Size (W x D x Hmm) | 370×290×215mm |
Net Weight(Kg) | 16KG |
Certificates | CE,ISO & Calibration report are available |
Matched Rotors for TG16E
Order No | Rotor | Max speed (rpm) | Max Volume(ml) | Max RCF (g) |
16E-1 | Angle rotor | 14000 | 4×8PCR | 12070 |
16E-2 | Angle Rotor | 16000 | 12×1.5/2ml | 17940 |

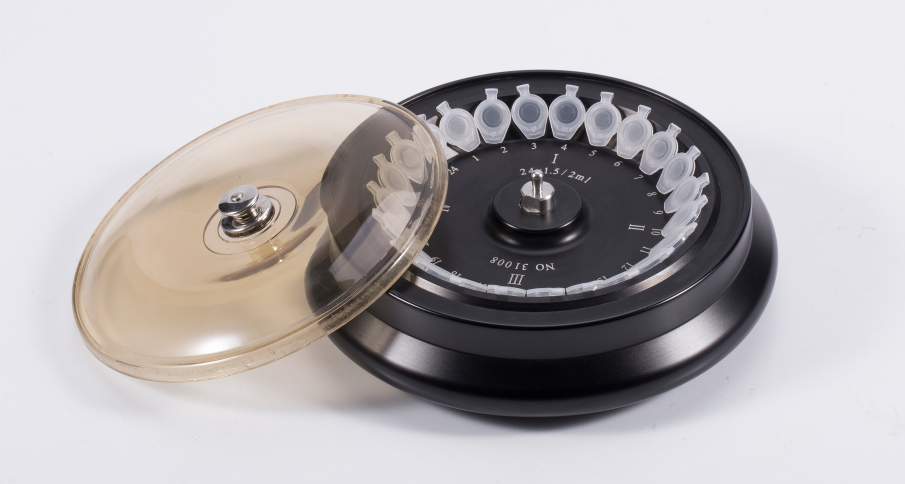

16E-3 | Angle Rotor | 14000 | 24×1.5/2ml | 17950 |
16E-4 | Angle Rotor | 16000 | 10×5ml | 17880 |
16E-5 | Angle Rotor | 13000 | 6×10ml | 14190 |
16E-6 | Angle Rotor | 12000 | 24 pieces capillary vessel | 15800 |
16E-7 | Angle Rotor | 16000 | 40x0.2ml | 19040 |
16E-8 | Angle Rotor | 13000 | 40x0.5ml | 17210 |
16E-9 | Angle Rotor | 13000 | 30x0.5ml | 13900 |
