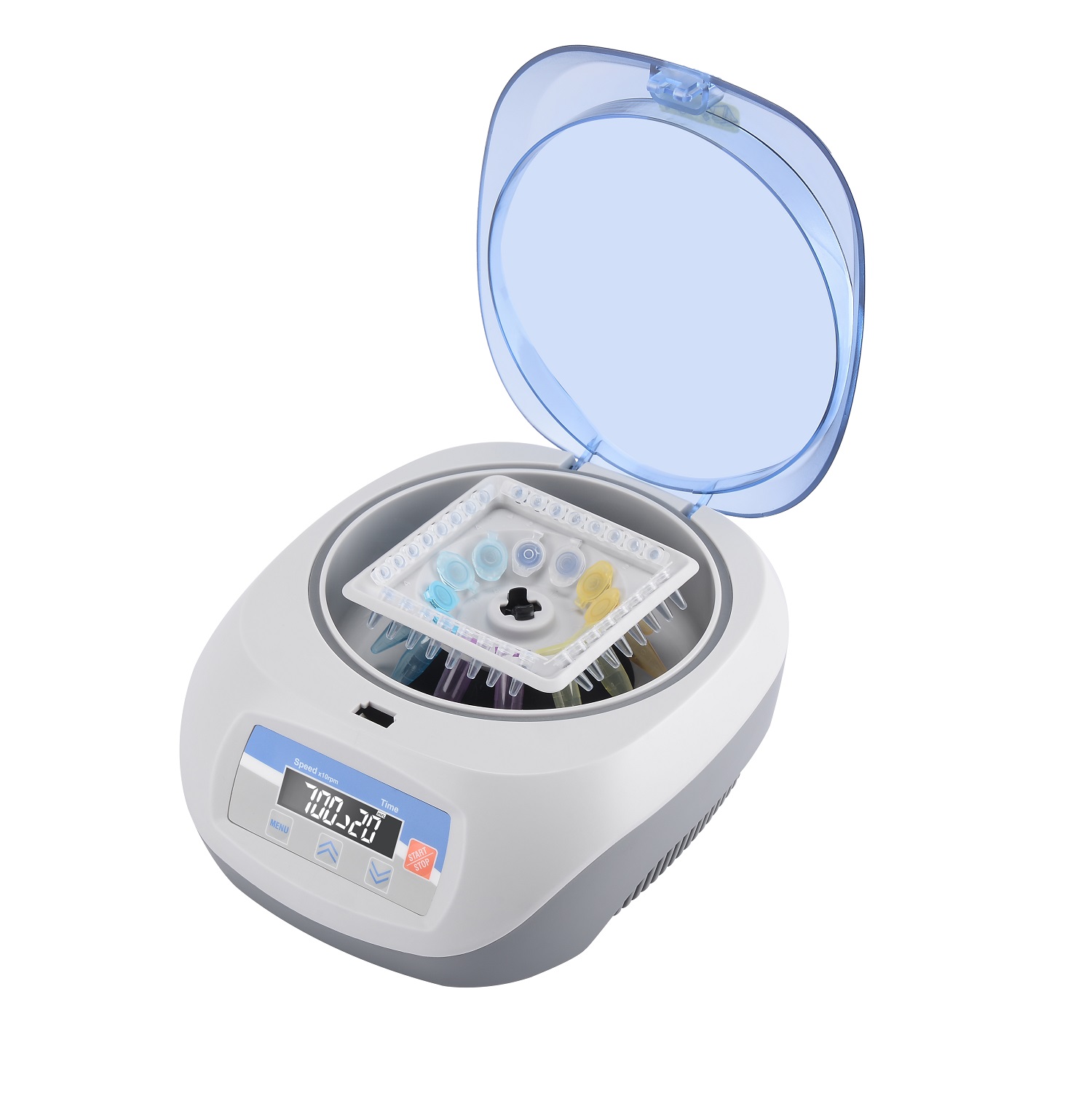

MiniL-12G Mini Micro Centrifuge

1.MiniL-12G centrifuge is widely used in laboratory and hospital.
2.This model can fit in 5ml, 2ml, 1.5ml, 0.5ml and 0.2ml tubes.
3.The handheld centrifuge is very suitable for microtubule filtration and fast centrifugation, the micro blood cell separation, microbial sample processing, experimental partition centrifugal of PCR.
4.Light weight, small size and beautiful design.
5.Easily control, super speed protection.
6.LCD display

  • MiniL-12G

  • Yingtai

Availability:
Quantity:
Inquire Add to Basket

Product Models and Main Technical Parameters:

Product number

MiniL-12G

Input power

AC100-250V/50/60Hz

Power fuse

PPTC / self-recovery fuse / no need to replace

Input power [W]

45W

control method

ST16 bit MCU/PWM/speed regulation;

Display method

Black and white LCD

motor

DC24V/DC permanent magnet motor

Effective centrifuge time

1-99min./1-59sec.

Speed [r/min.]

500～12000rpm±5%

Speed increase

500rpm

Maximum relative centrifugal force [×g]

9660×g

Misoperation/fault alarm

Voice prompt + display code

Size: length × width × height [mm]

194×229×120

Weight (no rotor)

2Kg

Noise at maximum speed

≤47dB(A)

Fastest acceleration time

≤12s

Fastest deceleration time

≤16s

Protection level

IP21

Allowable ambient temperature / relative humidity

5-40℃/80%

Testing standard

 EN 61010-1，EN 61010-2-020，EN 61326-1，EN 61010-3-2/A2


Note: Ambient temperature 23 ° C / at 23 ° C ambient temperature

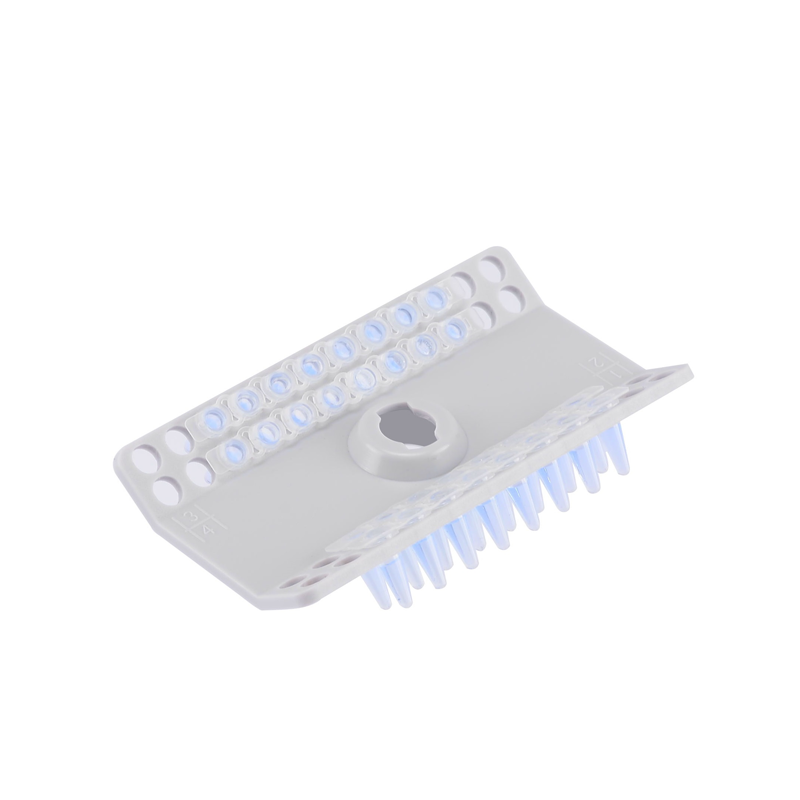

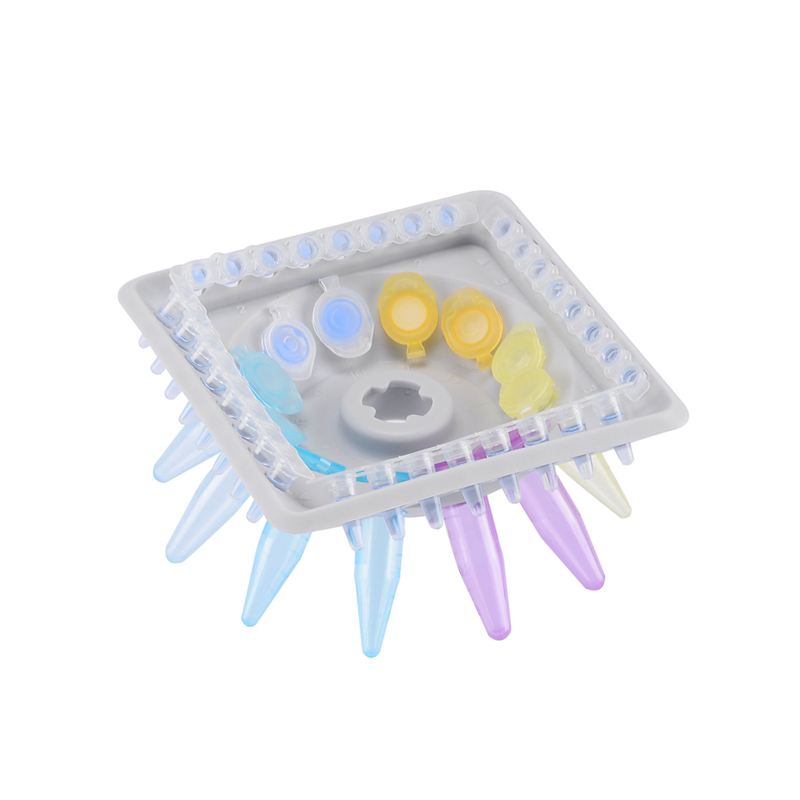

MiniL rotor parameter description:



MiniL-12G

Product number

Rotary number（Rotor）

Capacity (ml × tube number)

Maximum speed

（r/min.）

Max Rcf

Test tube type

MiniL-12G-A-1

#1 Angle-rotor

1.5/2.2×12+PCR0.2×8×4 row

12000

9500

PP cone bottom cover

MiniL-12G-A-2

#2 Angle-rotor

PCR 0.2×12×4 row

12000

5960

PP cone bottom cover

MiniL-12G-A-3

#3 Angle-rotor

5×4

12000

9660

PP cone bottom cover

MiniL-12G-A-4

#4 Angle-rotor

Capillary blood volume tube × 12

12000

8371

Diameter 1.5mm×40

MiniL-12G-A-5

#5 Angle-rotor

5/1.8/1.1×4

7000

3180

PP can be screwed
