TD4N Table Top 5000rpm Low Speed Laboratory Centrifuge
TD4N Features:
1. Microprocessor control, less noisily, it is widely used to qualitative analysis of blood serum, plasma and urea in the fields of hospital, blood center, laboratory and biochemistry.
2. Brushelss motor, free maintenance, no powder pollution, quick in speed up and down.
3. The flexible axle driven system which drive the rotor directly, smooth in operation and small vibration.
4. There are many rotors for your choice, suitable for different specifications meet customers' different requirements of separation.
5. Micro-computer control system, digital display the RCF, time and speed.
6. Electric lid lock, compact design, super speed and imbalance protection.
TD4N Technical Parameter:
Max. Speed | 5000rpm | Speed Accuracy | ±20rpm |
Max. Volume | 6x100ml | Power Supply | AC110V/220V 50HZ/60HZ |
Max. RCF | 3460xg | Noise | ≤55dBA |
Timer | 0~99min | Net Weight | 18Kg |
Dimension | 540x370x280mm | Certifications | CE, ISO & Calibration report are available. |
Warranty | 1 Year |
Matched Rotors for TD4N:
Order No. | Rotor Type | Max.Speed(rpm) | Max.Volume(ml) | Max.RCF(xg) |
4N-1 | Swing Rotor | 5000 | 6x10ml | 3460 |
4N-2 | Angle Rotor | 4000 | 30x7/5ml | 2250 |
4N-3 | Angle Rotor | 4000 | 18x15/10ml | 2250 |
4N-4 | Angle Rotor | 4000 | 24x10ml | 2200 |
4N-5 | Angle Rotor | 4000 | 12x15/7/5ml | 2150 |
4N-6 | Angle Rotor | 4000 | 12x20ml | 2200 |
4N-7 | Angle Rotor | 5000 | 6x15ml | 2540 |

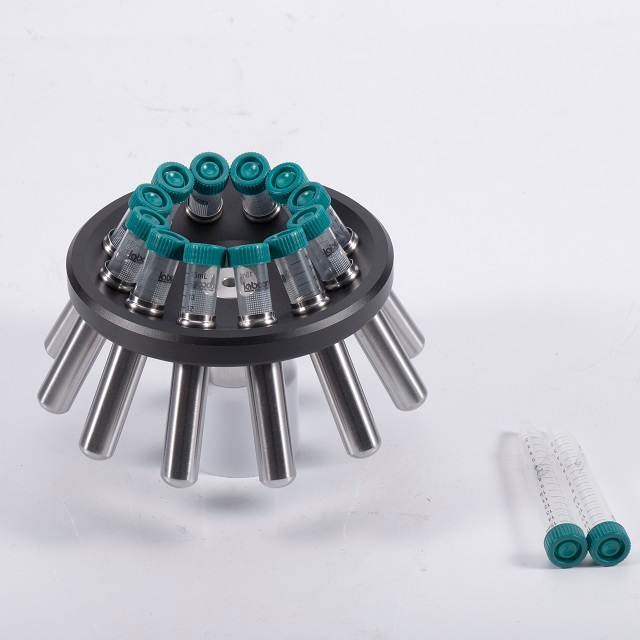

4N-8 | Angle Rotor | 5000 | 12x15ml | 3080 |
4N-9 | Angle Rotor | 5000 | 4x50ml | 2520 |
4N-10 | Angle Rotor | 5000 | 6x50ml | 2850 |
4N-11 | Angle Rotor | 5000 | 4x100ml | 2630 |

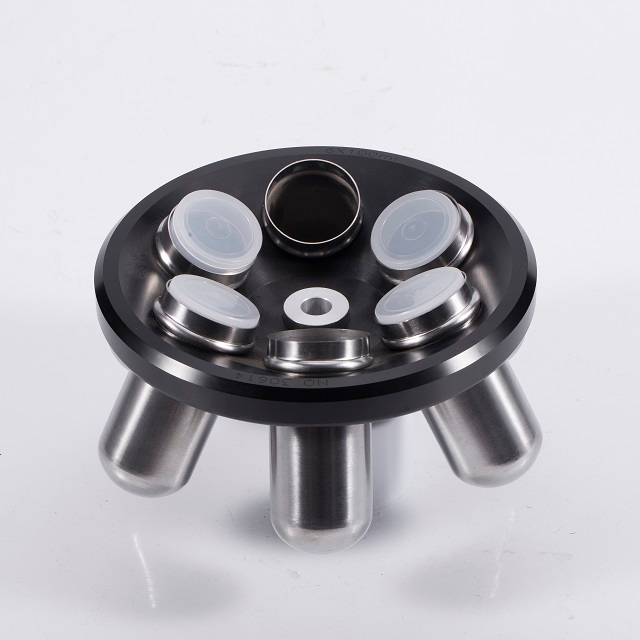

4N-12 | Angle Rotor | 5000 | 6x100ml | 3130 |
