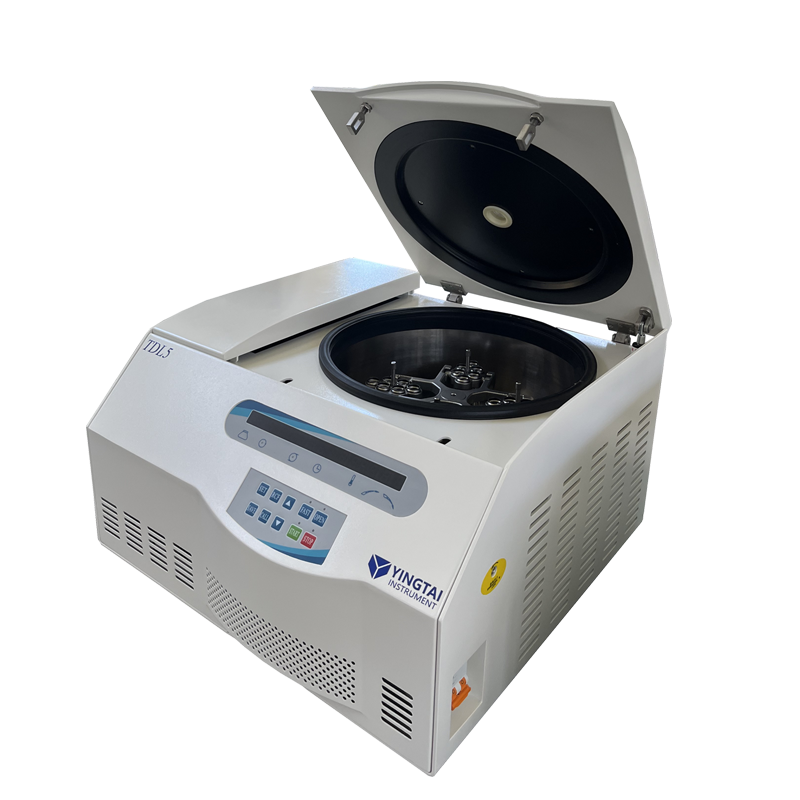

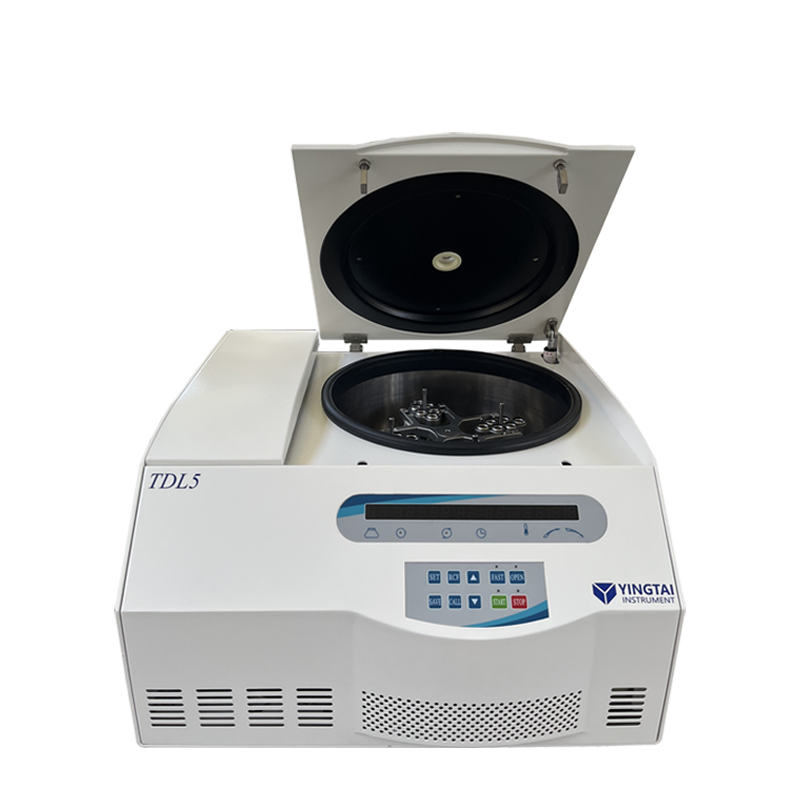

TDL5 Table Top Low Speed Refrigerated Centrifuge

1. Refrigerated centrifuge, widely used in laboratory, blood bank and hospital.
2. Imbalance sensor and over temperature sensor
3. Pre-cooling design, 10 kinds of acceleration and deceleration
4. More than 20 kinds of rotors for your choice
5. Low noise, small vibration and compact design.
6. Import compressors fluorine free, double cycle cooling, free environment pollution
7. The centrifuge body is made of high-quality steel, very safe
8. User-friendly large digital display provides speed, time and temperature parameters
9. Brushless motor which in great torque, no powder pollution, free maintenance, quick in speed up and down

  • TDL5

  • Yingtai

Availability:
Quantity:
Inquire Add to Basket

TDL5 Table Top Low Speed Refrigerated Centrifuge


TDL5 Technical Parameter：


Max. Speed

5000rpm

Max. RCF

4730×g

Max. Capacity

4×250ml

Time Range

0~9h59min

RPM/RCF Convert

Yes

Noise (dB)

≤ 58

Temperature

-20℃-40℃

Acc/Dec

10 Kinds

Speed Accuracy

±20r/min

Temperature Accuracy

±1℃

Voltage(V/Hz)

AC 220V/110V 50HZ/60HZ

Size (W x D x Hmm)

650×665×400mm

Net Weight(Kg)

83KG

Certificates

CE,ISO & Calibration report are available


Matched Rotors for TDL5

Order No

Rotor

Max Speed(r/min)

Volume(ml)

Max RCF(×g)

D5-1

Swing rotor(round cup)

4000

4×250ml

2880

D5-2

Swing buckets

4000

4×16×7ml

2860

D5-3


4000

4×16×5ml

2470

D5-4


4000

4×13×10ml

2830

D5-5

Swing rotor

5000

4×1×50ml

4730

D5-6



4×1×100ml

4730

D5-7


4000

4×2×100ml

3020

D5-8



4×2×50ml

3020

D5-9



4×4×15ml

3020

D5-10



4×6×15ml

3020

D5-11



4×4×10/7

2770

D5-12



4×4×5 vacuum tube adapters

2360

D5-13



4×6×10/7

2770

D5-14



4×6×5 vacuum tube adapters

2360

D5-15



4×8×10/7

2770

D5-16



4×8×5 vacuum tube adapters

2360

D5-17



4×12×5 vacuum tube

2480

D5-18



4×12×7 vacuum tube

2760

D5-19



4×10×10 vacuum tube

2880

D5-20

Microplate rotor

4000

2×3×96 well

2310

D5-21

Fixed rotor

5000

6×15ml

2540

D5-22

Fixed rotor

5000

12×15ml

3080

D5-23


5000

24×15ml

3500

D5-24


5000

30×15ml

3830

D5-25


5000

4×50ml

2520

D5-26


5000

6×50ml

2850

D5-27


5000

12×50ml

3860

D5-28


5000

4×100ml

2630

D5-29


5000

6×100ml

3130
