TDL5E Bench top low speed refrigerated centrifuge machine

TDL5E is a table top low speed refrigerated centrifuge widely used in the field of biochemistry, biological products, pharmaceutical factory and laboratory.
  • TDL5E

  • Yingtai (Can do OEM)

  • 8421199090

Availability:
Quantity:

TDL5E Bench top low speed refrigerated centrifuge machine



Application:

Widely used in the field of biochemistry, biological products, pharmaceutical factory and laboratory.



TDL5E Technical Parameters:

Max. Speed 5000rpm  Max.RCF 4420xg
Max. Volume 4x180ml Speed Accuracy ±20rpm
Timer 1~99h59min Noise ≤60dBA
Dimension(LxWxHmm) 570x600x340mm Net Weight 76Kg
Power Supply AC220V/110V 50HZ/60HZ Temperature Range -20℃~40℃
Temperature Accuracy ±1℃ Certifications CE, ISO & Calibration report is available.

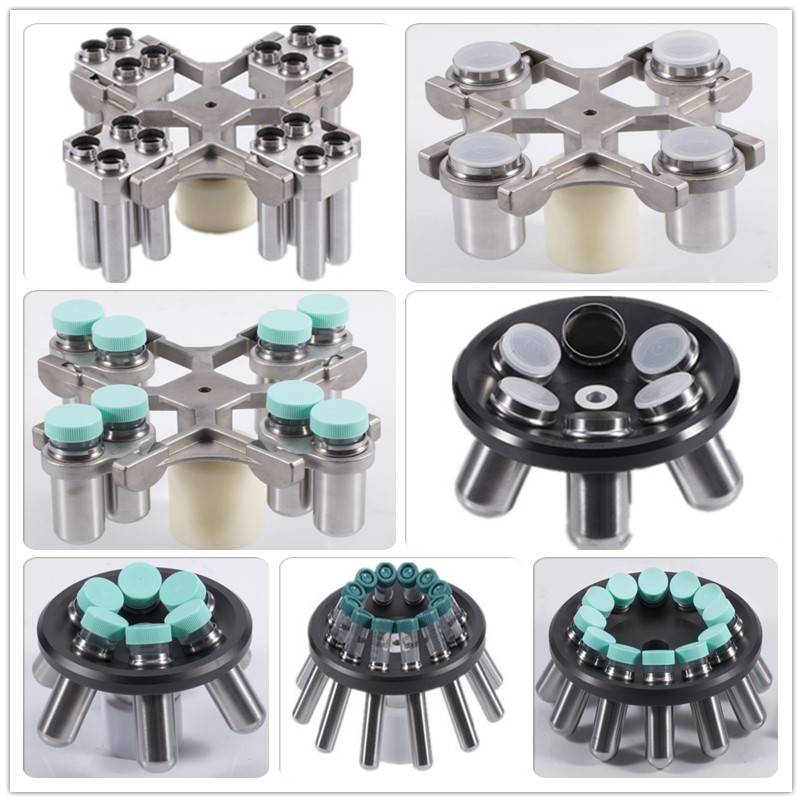

Matched Rotors for TDL5E:

Order No.
Rotor Type  Max. Speed(rpm)
Volume(ml)
Max.RCF(xg)
5E-1
Swing rotor  4000
4x180ml 2580
5E-2 Microplate rotor  4000
2x3x96well
2020
5E-3 Swing rotor
5000 4x1x50ml 4420
5E-4 Swing rotor 5000
4x1x100ml 4420
5E-5 Swing rotor 4000
4x2x50ml 2820
5E-6 Swing rotor 4000 4x4x15ml
2820
5E-7 Swing rotor 4000
4x6x10/7ml
2580
5E-8 Swing rotor 4000
4x6x5ml 2170
5E-9 Swing rotor 4000
4x4x10/7ml 2580
5E-10 Swing rotor 4000
4x4x5ml 2170
5E-11 Fixed rotor
5000
6x15ml
2540
5E-12 Fixed rotor 5000 12x15ml 3080
5E-13  Fixed rotor 5000 24x15ml 3500
5E-14 Fixed rotor 5000 4x50ml
2520
5E-15 Fixed rotor 5000 6x50ml 2850
5E-16 Fixed rotor 5000 4x100ml
2630
5E-17 Fixed rotor 5000 6x100ml 3130

TDL5E转子
