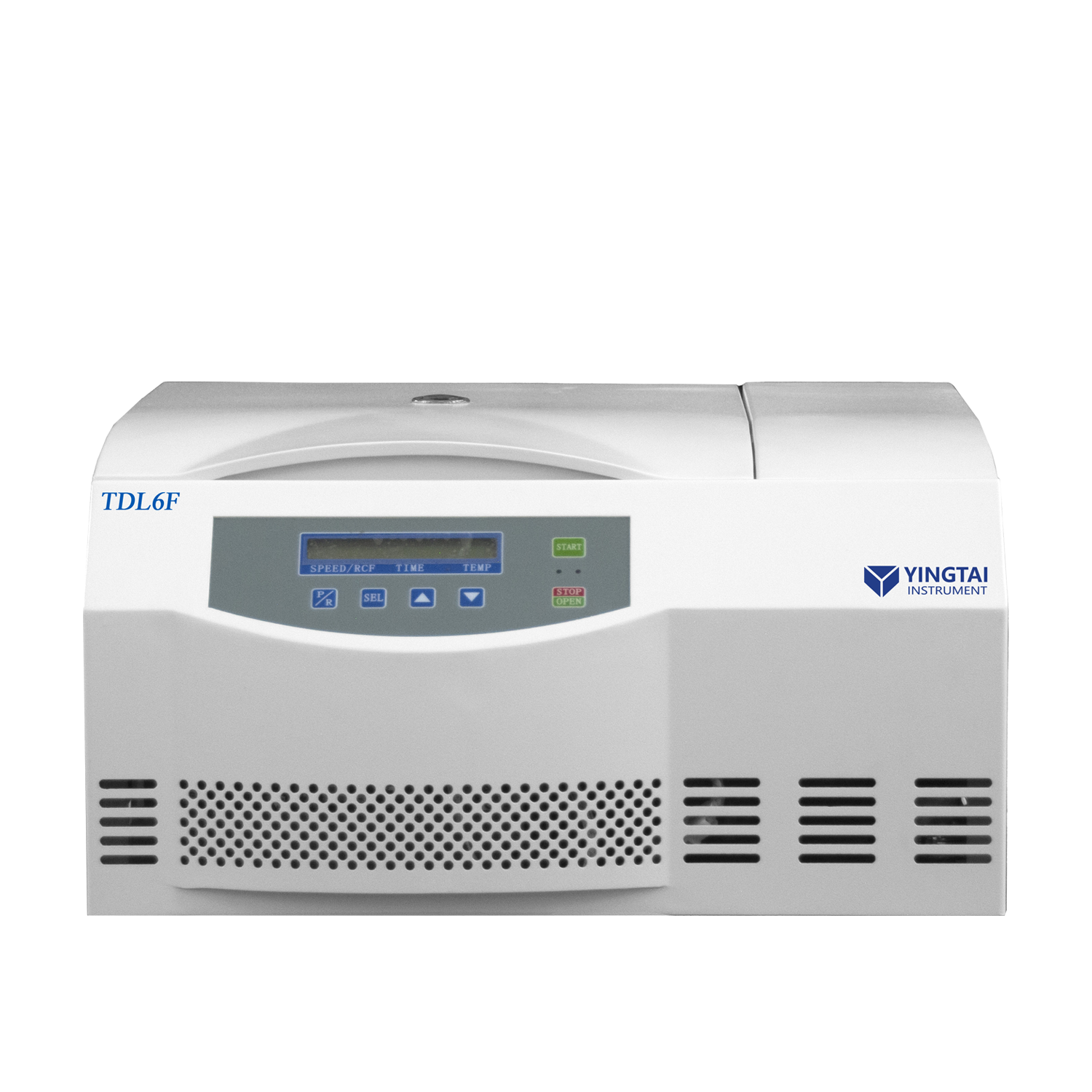

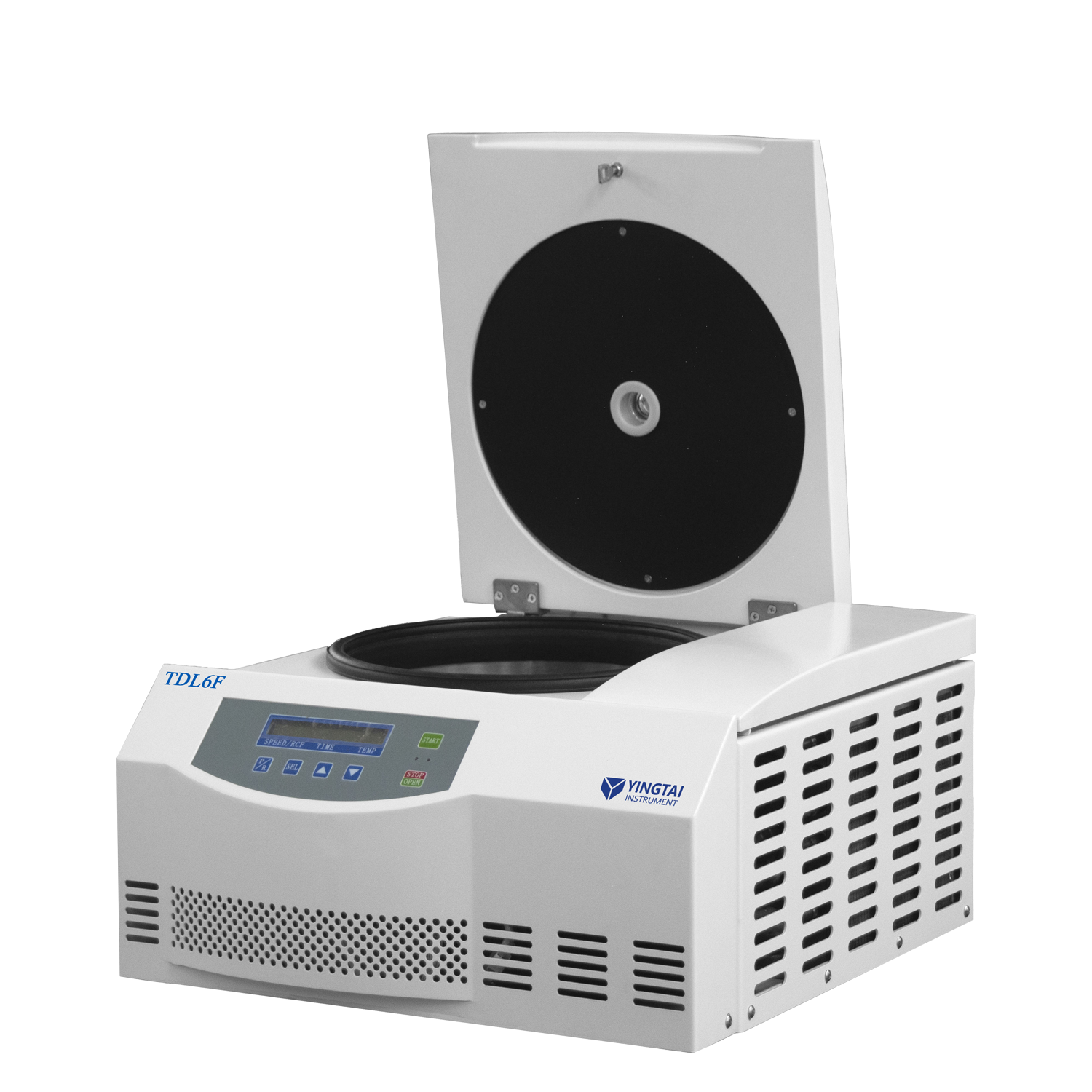

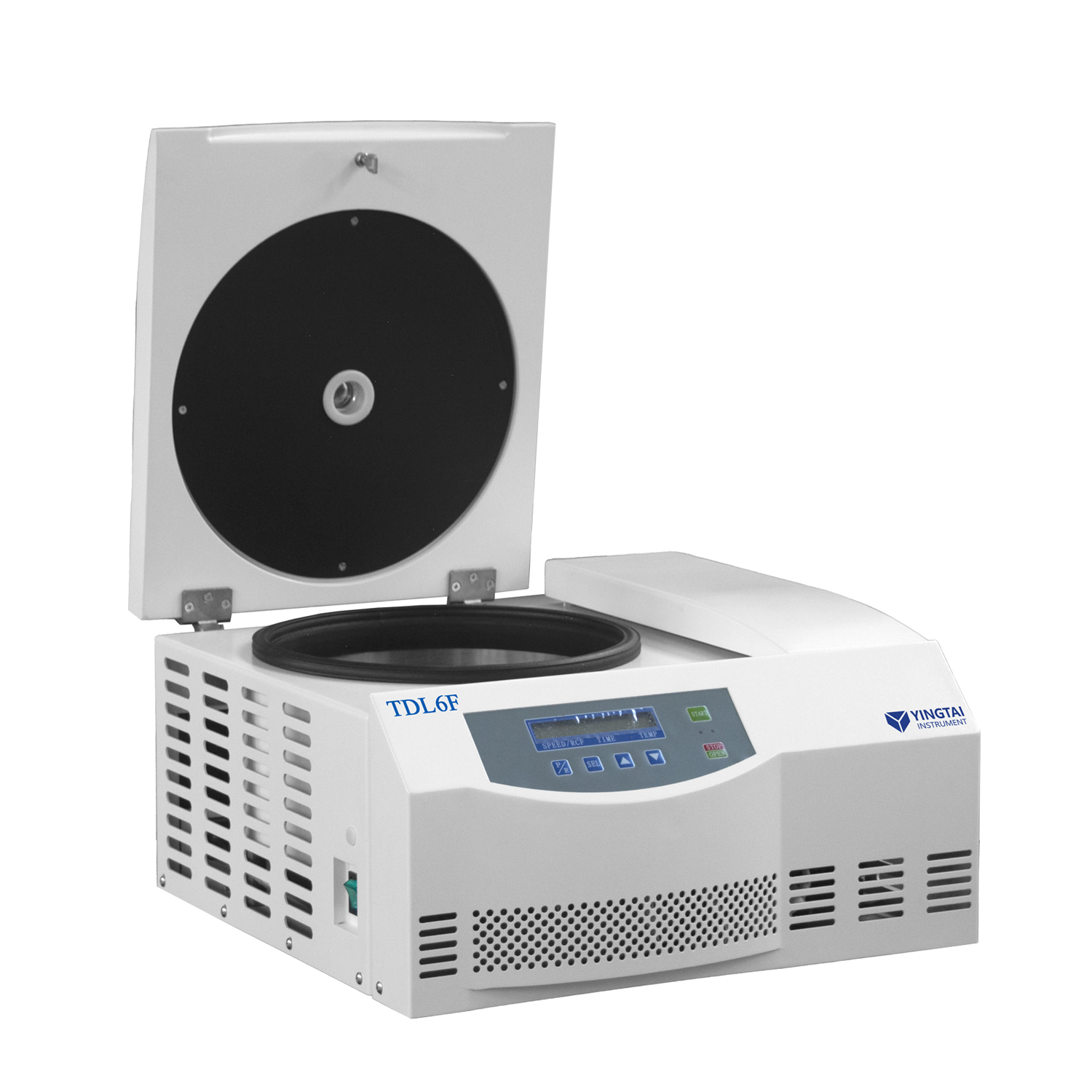

TDL6F Table Top Refrigerated Centrifuge

■ Appearance is simple, elegant, and stylish, with a stainless steel interior chamber and multiple protections;
■ Features a large digital LCD display, making operating parameters clear and easy to read at a glance;
■ Equipped with an environmentally friendly compressor unit, providing excellent cooling performance without environmental pollution;
■ Includes multiple protection functions such as overspeed, overtemperature, and door lock, ensuring safe and reliable use of the instrument;
■ Comes with a variety of rotors, making the machine versatile.

  • TDL6F

  • Yingtai

Availability:
Quantity:
Inquire Add to Basket

TDL6F Table Top Refrigerated Centrifuge


Technical Parameters


Max. Speed

6000r/min

Max. Capacity

6×100ml

Max. RCF

3790×g

Timer

0~99min59s

Temperature Range

-20℃~40℃

Speed Accuracy

±10r/min

Noise

≤56dBA

Voltage

600W

Power

AC 220,  50Hz，3A

Dimension

500*480*265mm

Net Weight

42kg


Adapter Rotor


Oeder NumberRotor TypeMax. Speed (rpm)Max. Volume(ml)Max. RCF(×g)
NO 05142Angle rotor60004×50ml3628
NO 05146Angle rotor60004×100ml3790
NO 05244Angle rotor4000

16×5/7m

2200
NO 05137Angle rotor60006×15ml3660
NO 05143Angle rotor50006×50ml2850
NO 05147Angle rotor50006×100ml3130
NO 05139Angle rotor500012×15ml3080
NO 05221Swing rotor50006×10ml3460
