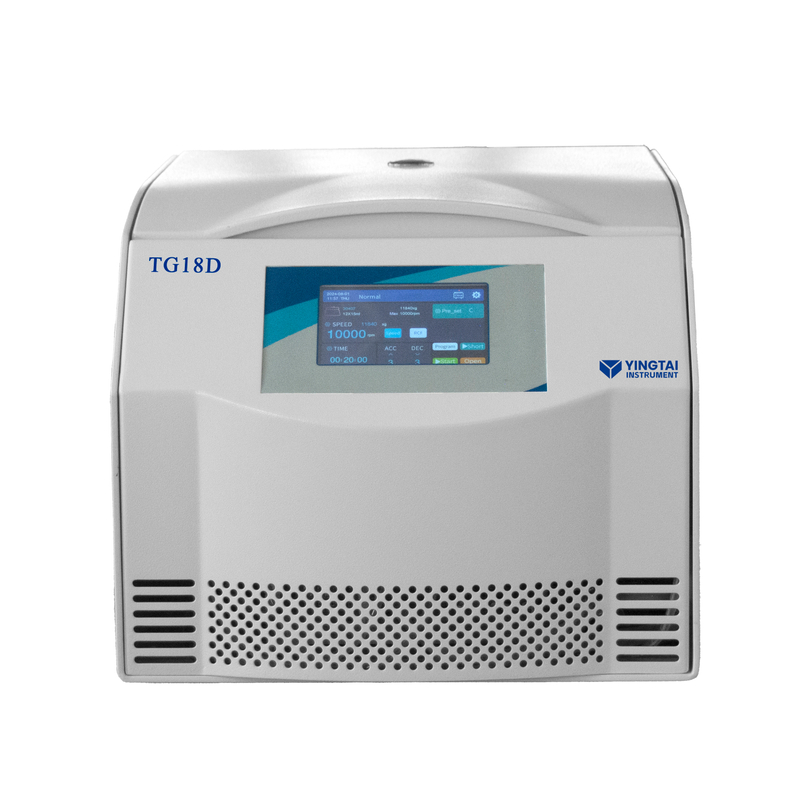

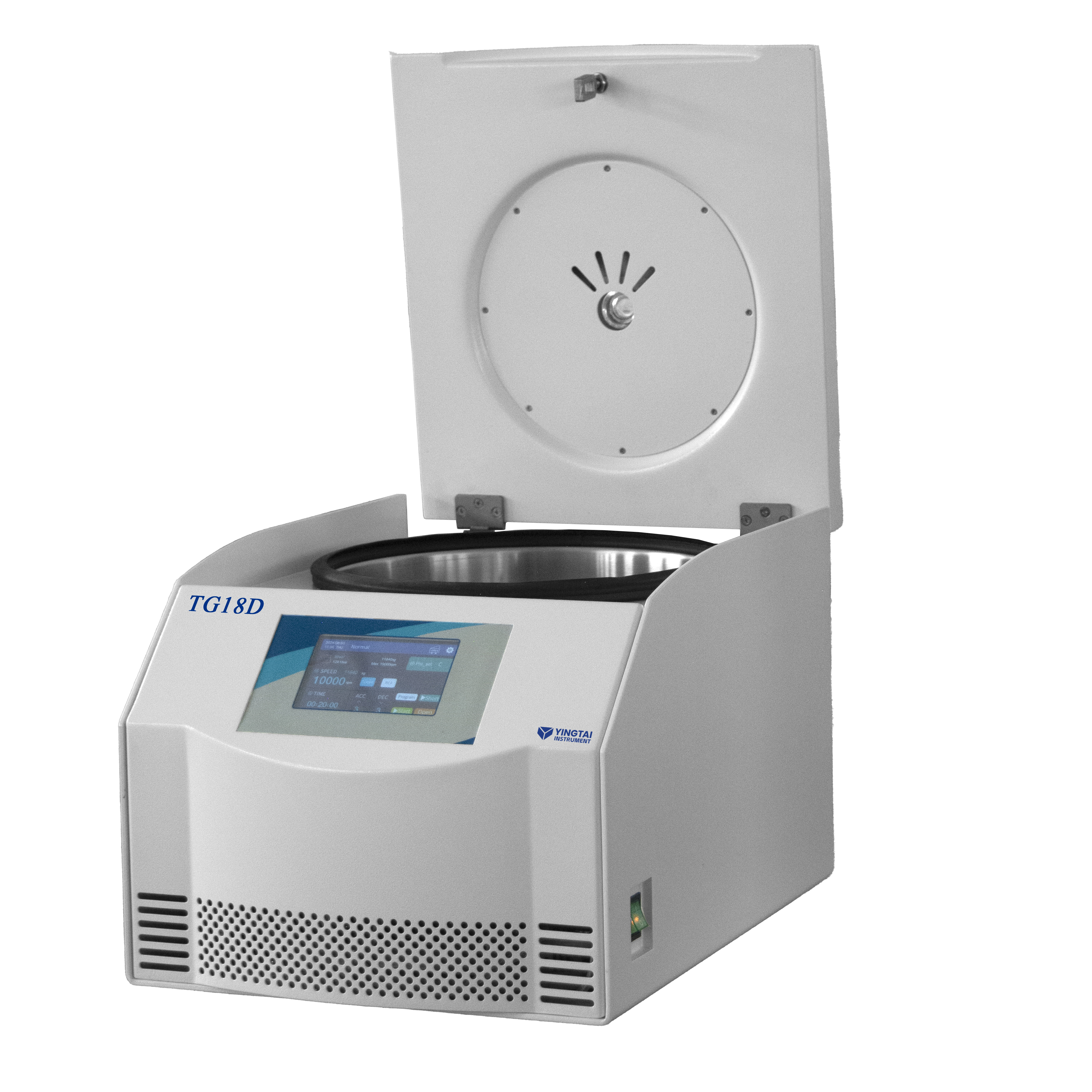

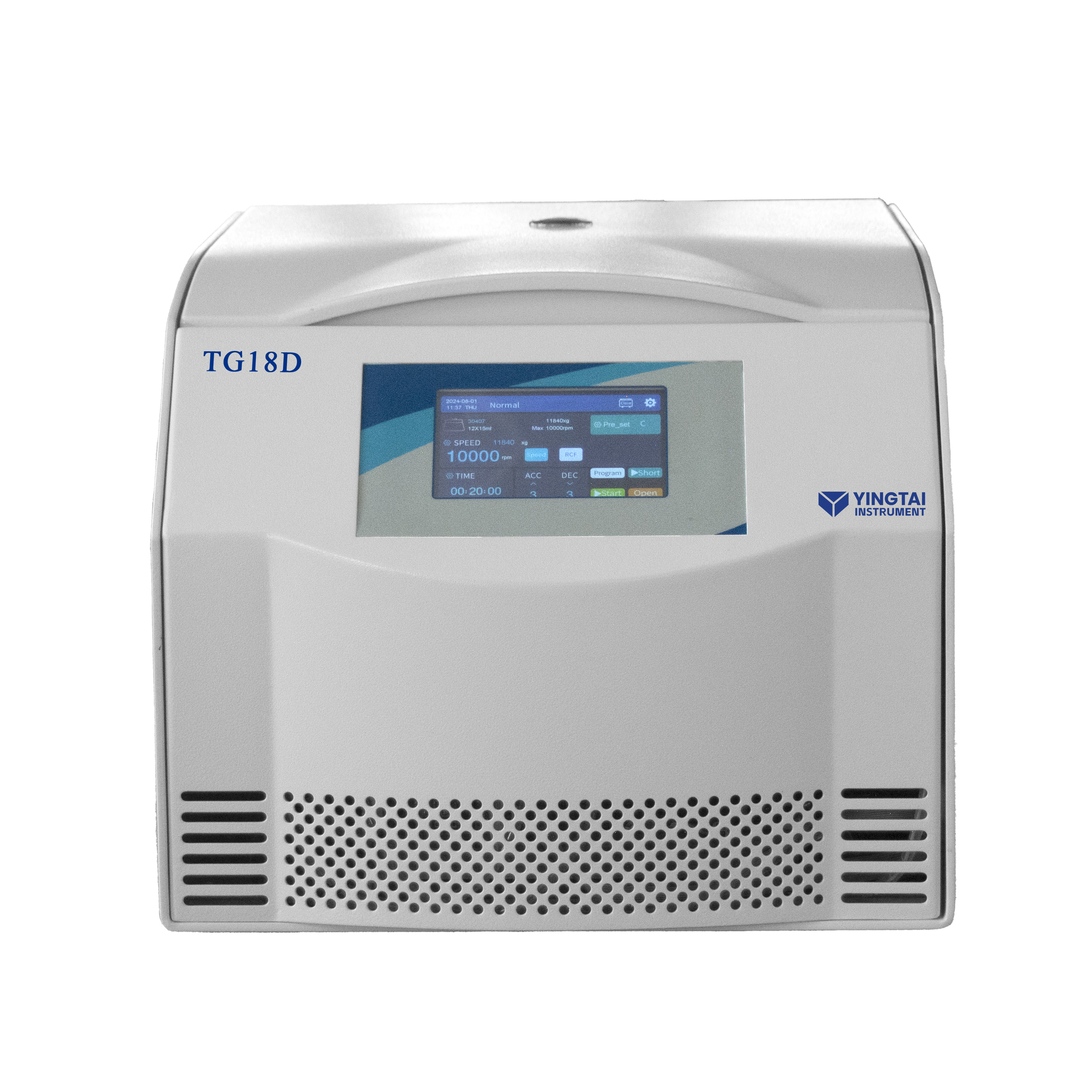

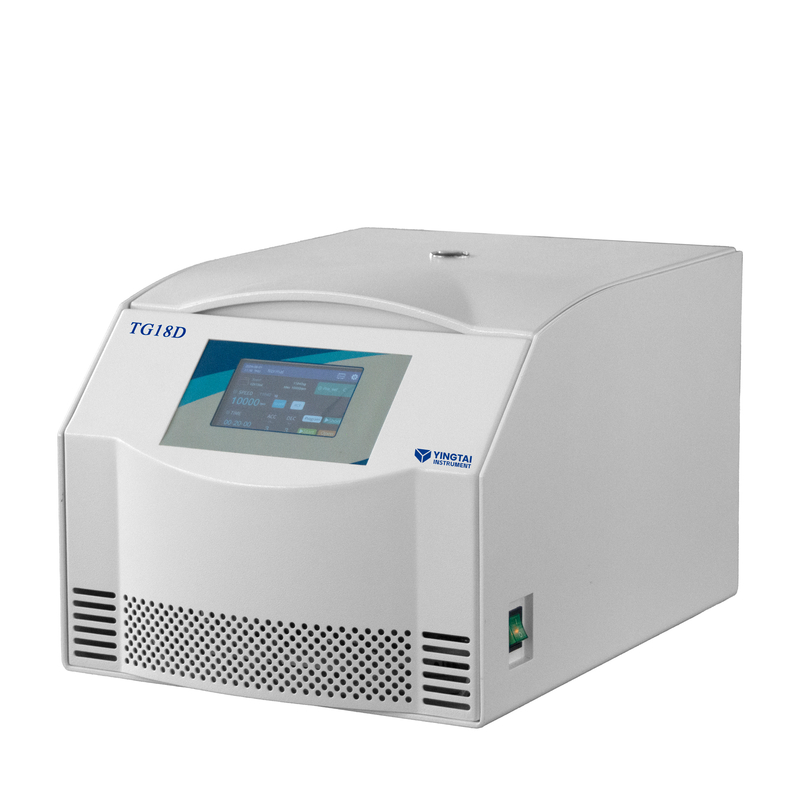

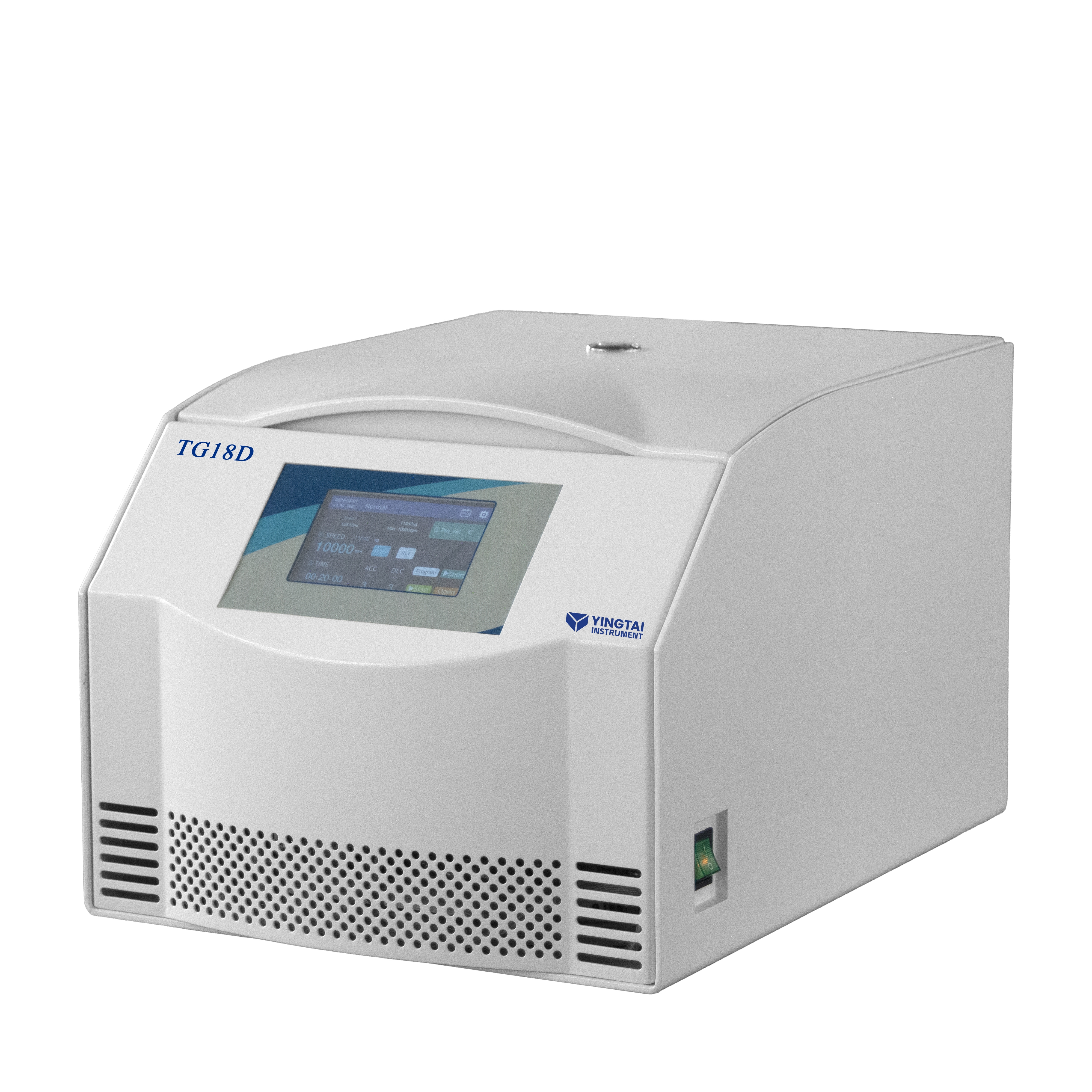

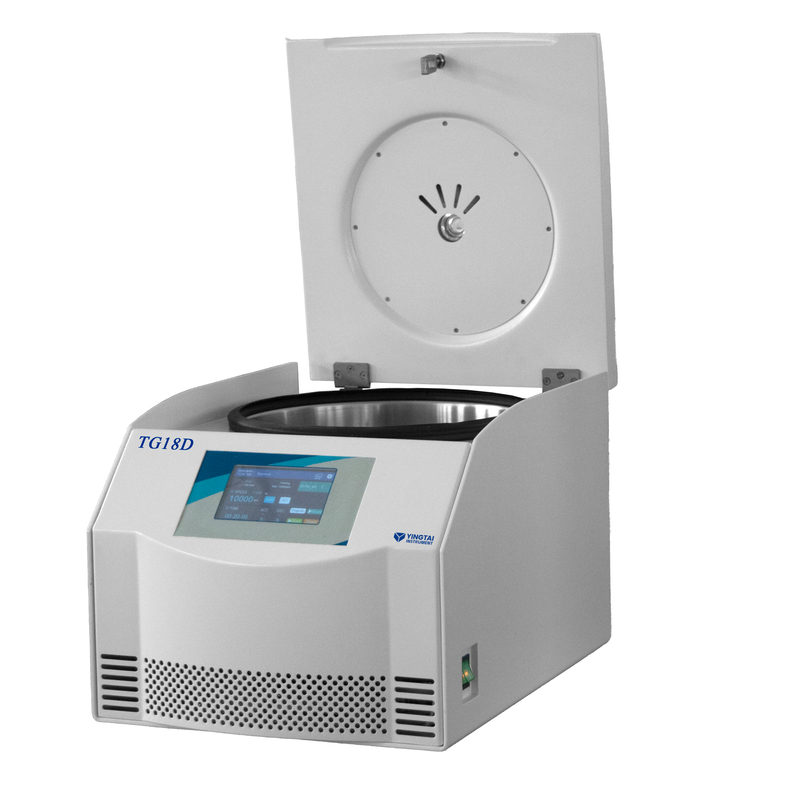

TG18D Table Top High And Low Speed Universal Centrifuge

1. Widely used for laboratory, chemistry and hospital.
2. 10 kinds of acceleration and deceleration
3. More than 10 rotors for your choice
4. High speed, low noise, compact design and small vibration
5. User-friendly LCD display provides speed, time and temperature parameters. 100 Programs can be stored.
6. Brushless frequency motor which in great torque, no powder pollution, free maintenance, quick in speed up and down
7. Imbalance sensor and over speed sensor, the centrifuge body is made of high-quality steel, very safe.
  • TD18D

  • Yingtai

Availability:
Quantity:

TG18D  Table Top High And Low Speed Universal Centrifuge


TG18D Technical Parameter:

Max. Speed

18500rpm

Max. RCF

23990×g

Max. Capacity

4×600ml

Time Range

0~99h99min59sec

RPM/RCF Convert

Yes

Noise (dB)

≤ 65

Acc/Dcc

10 Kinds

Speed Accuracy

±20r/min

Voltage(V/Hz)

AC 220V/110V  50HZ/60HZ

Size (W x D x Hmm)

685x500x385mm

Net Weight(Kg)

75kg

Certificates

CE,ISO & Calibration report are available


Matched Rotors for TG18D

Order No.

Rotor

Max Speed (rpm)

Max Volume

(ml)

Max. RCF(×g)

18D-1

Swing rotor

4000

4×600ml(round cup)

3530

18D-2

Swing rotor

4000

4x600ml(square cup)

3450

18D-3

Swing rotor

4000

4x7x50ml

3470

18D-4

Swing rotor

4000

4×24×10ml

3150

18D-5


4000

4×30×7/5ml

2840

18D-6

Fixed Rotor

14000

4×8PCR

12070

18D-7

Fixed Rotor

13000

6×8PCR

16080

18D-8

Fixed Rotor

14000

8×8PCR

13390

18D-9

Fixed Rotor

13000

12×8PCR

17220

18D-10

Fixed Rotor

14000

40×0.5ml

19960

18D-11

Fixed Rotor

18500

12×1.5ml

   23990

18D-12

Fixed Rotor

15000

24×1.5ml

20600

18D-13

Fixed Rotor

13500

30×1.5ml

19340

18D-14

Fixed Rotor

11000

48×1.5ml

12840

18D-15

Fixed Rotor

15000

16×5ml

19350

18D-16

Fixed Rotor

14000

6×10ml

   16460

18D-17

Fixed Rotor

13000

12×10ml

17030

18D-18

Fixed Rotor

11000

16×10ml

13950

18D-19

Fixed Rotor

11000

8×15ml

12730

18D-20

Fixed Rotor

9000

12×15ml

9590

18D-21

Fixed Rotor

5000

24×15ml

3500

18D-22

Fixed Rotor

5000

30×15ml

3830

18D-23

Fixed Rotor

12000

6×30ml

14000

18D-24

Fixed Rotor

12000

6×50ml(conical)

16050

18D-25

Fixed Rotor

12000

6×50ml(round)

15960

18D-26

Fixed Rotor

11000

4×85ml

13560

18D-27

Fixed Rotor

10000

4×100ml

10310

18D-28

Fixed Rotor

8000

6×100ml

7280

18D-29

Fixed Rotor

4000

12×100ml

2970

18D-30

Fixed Rotor

12000

24 capillaries

15800

18D-31

Swing Rotor

15000

4×5ml

19920

18D-32

Vertical rotor

16000

16×5ml

16450

18D-33

Vertical rotor

14000

8×30ml

19750

18D-34

Microplate rotor

4000

2x4x96 well

3210
