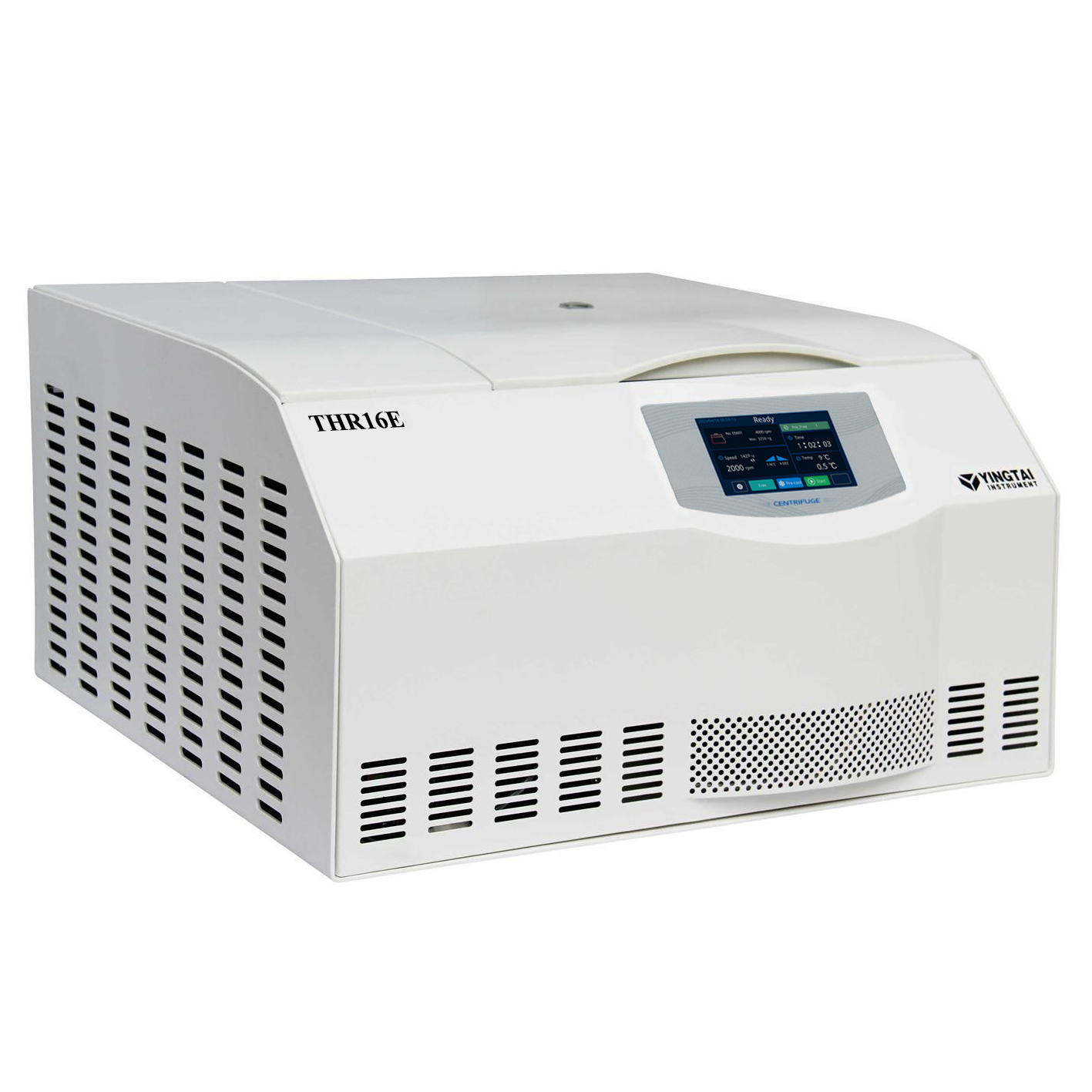

THR16E Table Top High And Low Speed Refrigerated Universal Centrifuge

1. Refrigerated centrifuge. Widely used for laboratory, chemistry and hospital.
2. Pre-cooling design, 10 kinds of acceleration and deceleration
3. More than 10 rotors for your choice
4. High speed, low noise, compact design and small vibration
5. User-friendly touch screen LCD display provides speed, time and temperature parameters.100 programs can be stored.
6. Brushless frequency motor which in great torque, no powder pollution, free maintenance, quick in speed up and down
7. Imbalance sensor and over speed sensor, the centrifuge body is made of high-quality steel, very safe.

  • THR16E

  • Yingtai (Can do OEM)

Availability:
Quantity:
Inquire Add to Basket

THR16E Technical Parameter：

Max. Speed

16000rpm

Max. RCF

29530×g

Max. Capacity

4×800ml

Time Range

0~99h59min59sec

RPM/RCF Convert

Yes

Noise (dB)

≤ 60

Temperature

-20℃-40℃

Acc/Dcc

10 Kinds

Speed Accuracy

±20r/min

Temperature Accuracy

±1℃

Voltage(V/Hz)

AC 220V/110V  50HZ/60HZ

Certificates

CE,ISO & Calibration report are available

Size(WxDxH)

720x715x420mm

Net weight

125kg



Matched Rotors for THR16E:


Order No.

Rotor

Max Speed (rpm)

Max Volume (ml)

Max. RCF（×g）

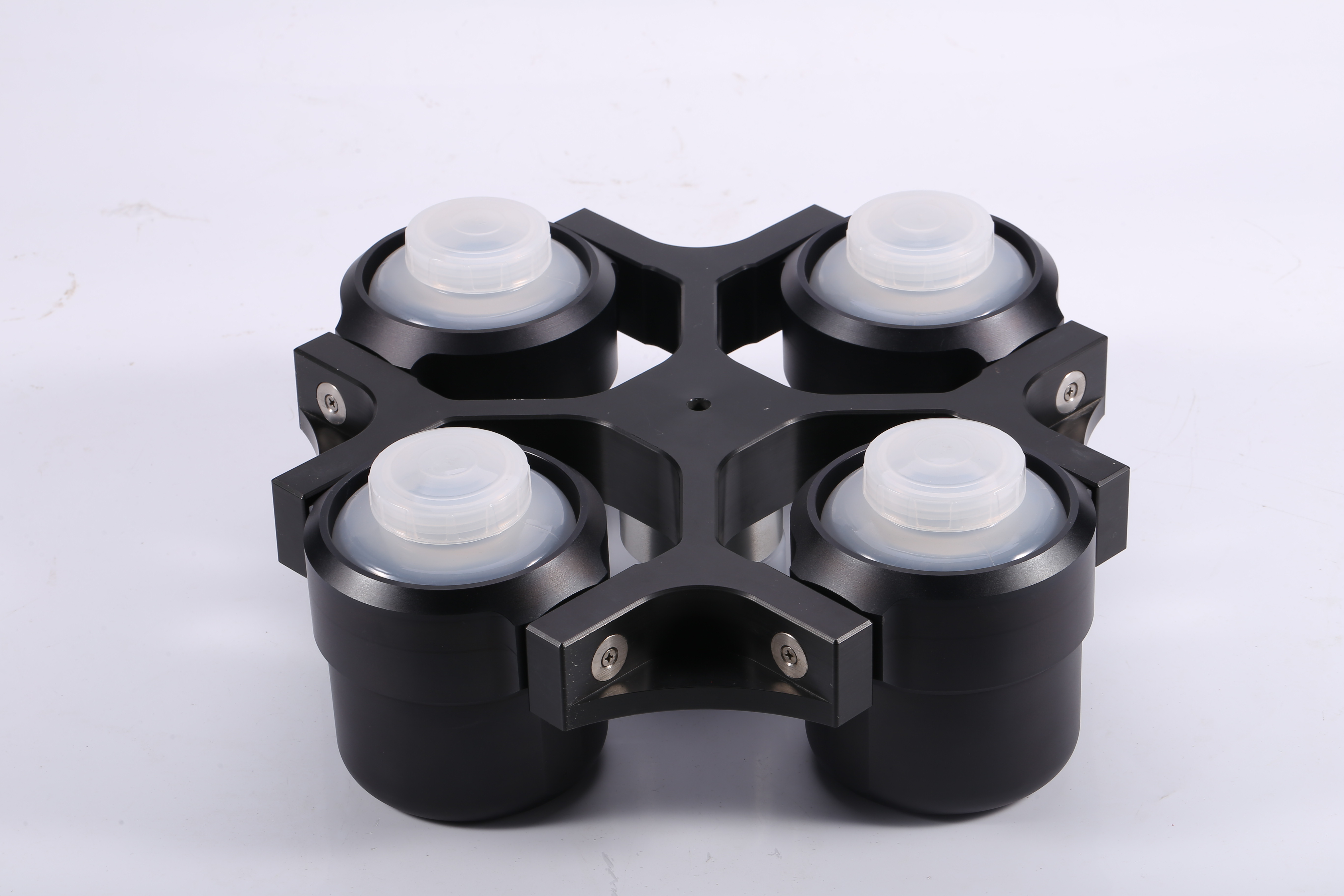

R16E-1

Swing rotor(round cup)

4000

4×800ml

3450

R16E-2

Microplate rotor

4000

4×4/1×96 Well

2940

R16E-3

Swing rotor

4000

4×7×50ml

3460

R16E-4

Swing rotor

5000

4×50ml/100ml

4730

R16E-5

Swing rotor

4000

4×30×7ml vacuum tube

3130

R16E-6

4000

4×30×5ml vacuum tube

2840

4000

4×18×10ml vacuum tube

3130

Swing Rotor

4000

Fat bottle

3830

R16E-7

Fixed Rotor

16000

4×8PCR

15760

R16E-8

Fixed Rotor

16000

6×8PCR

24370

R16E-9

Fixed Rotor

16000

8×8PCR

17480

R16E-10

Fixed Rotor

16000

12×8PCR

26090

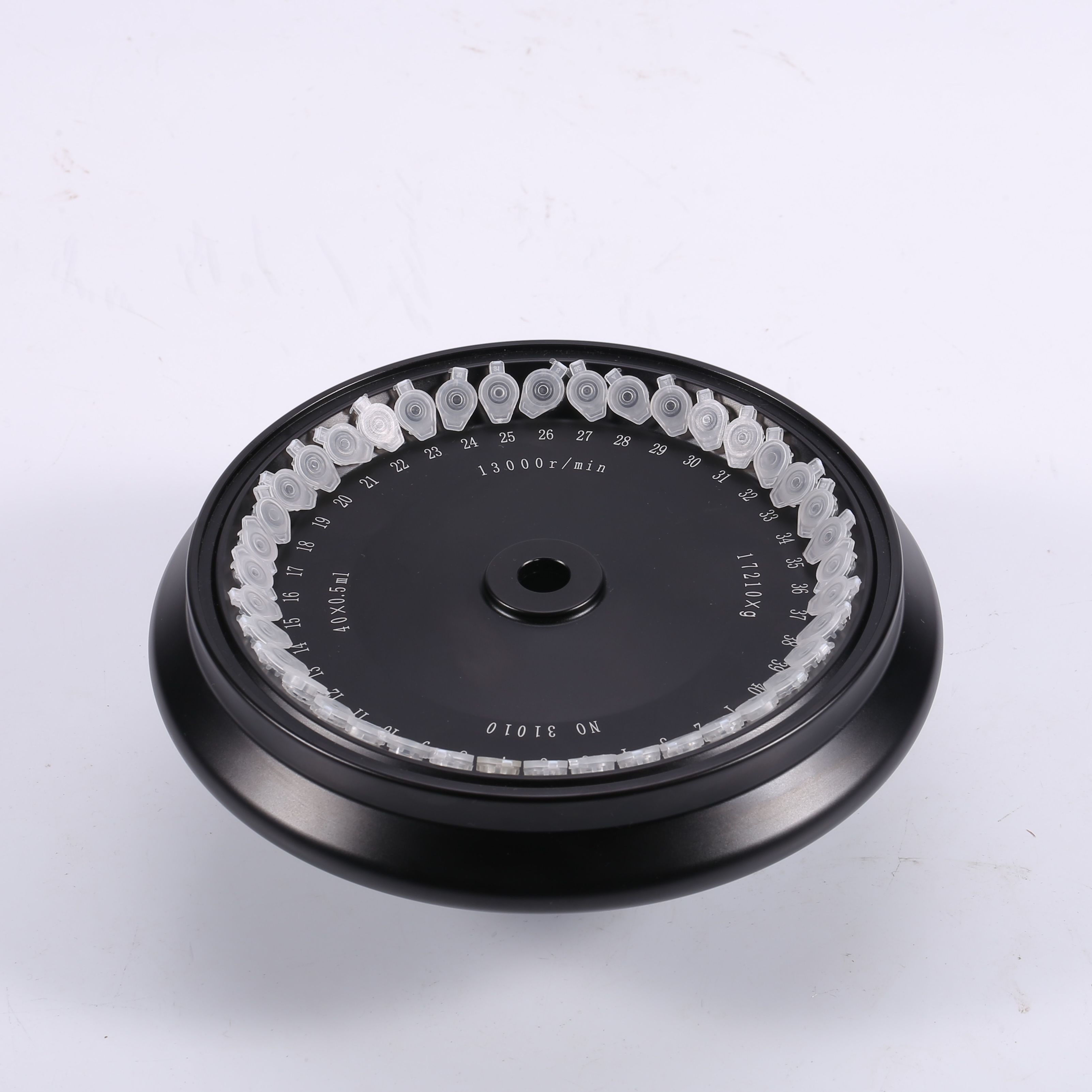

R16E-11

Fixed Rotor

15000

40×0.5ml

22920

R16E-12

Fixed Rotor

16000

12×1.5ml

17940

R16E-13

Fixed Rotor

16000

24×1.5ml

23440

R16E-14

Fixed Rotor

16000

30×1.5ml

27170

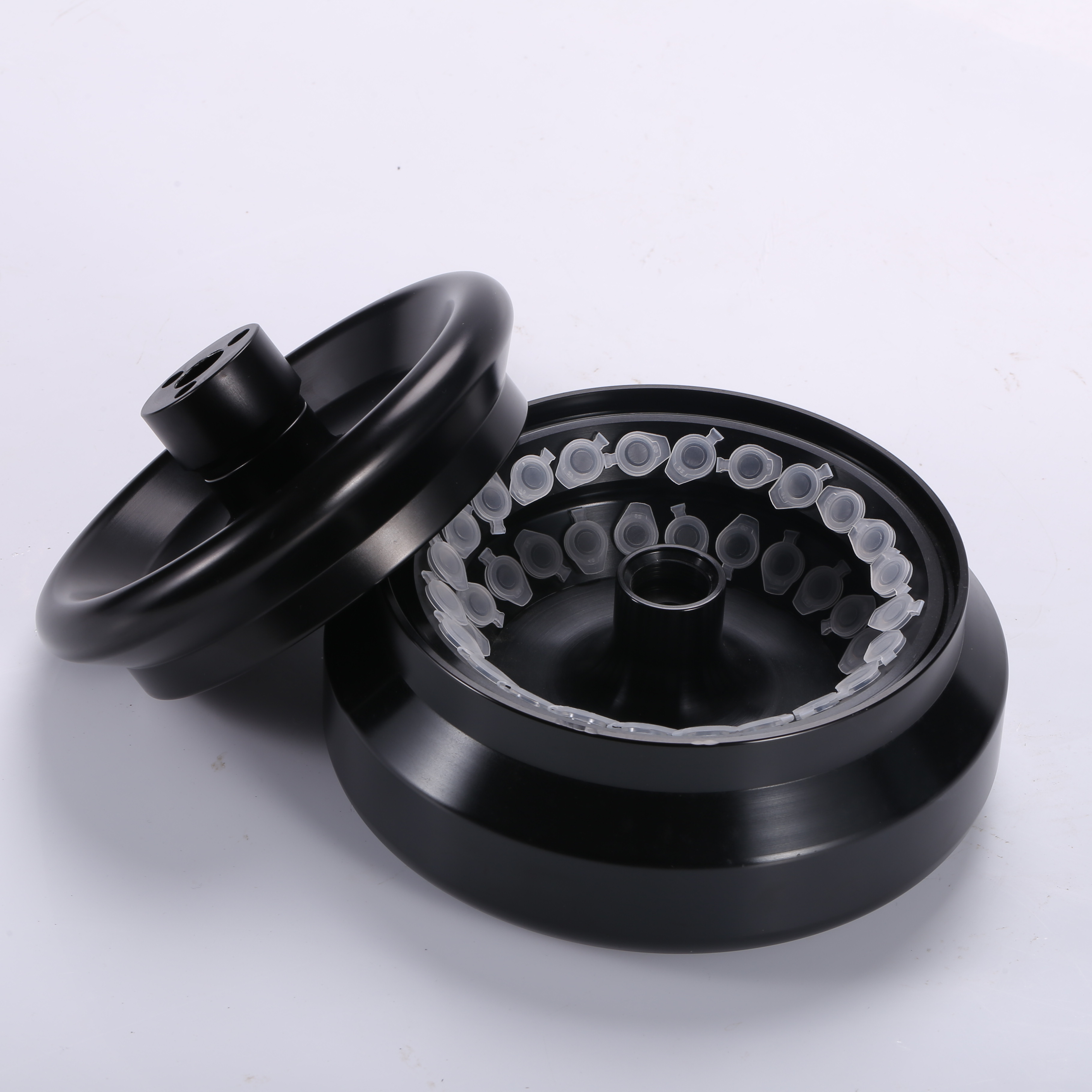

R16E-15

Fixed Rotor

16000

48×1.5ml

27170

R16E-16

Fixed Rotor

16000

16×5ml

22020

R16E-17

Fixed Rotor

16000

6×10ml

21500

R16E-18

Fixed Rotor

16000

12×10ml

25800

R16E-19

Fixed Rotor

15000

16×10ml

26530

R16E-20

Fixed Rotor

15000

8×15ml

23680

R16E-21

Fixed Rotor

13000

12×15ml

20020

R16E-22

Fixed Rotor

5000

24×15ml

3500

R16E-23

Fixed Rotor

5000

30×15ml

3830

R16E-24

Fixed Rotor

16000

6×30ml

24890

R16E-25

Fixed Rotor

14000

12×30ml

20700

R16E-26

Fixed Rotor

15000

6×50ml(conical)

25080

R16E-27

Fixed Rotor

12000

8×50ml(conical)

18200

R16E-28

Fixed Rotor

10000

10×50ml(conical)

13870

R16E-29

Fixed Rotor

4000

24×50ml

2970

R16E-30

Fixed Rotor

15000

6×50ml(round)

24940

R16E-31

Fixed Rotor

13000

8×50ml(round)

20980

R16E-32

Fixed Rotor

14000

4×85ml

21960

R16E-33

Fixed Rotor

15000

6×85ml

22469

R16E-34

Fixed Rotor

10000

8×85ml

13780

R16E-35

Fixed Rotor

14000

4×100ml

20220

R16E-36

Fixed Rotor

13000

6×100ml

19230

R16E-37

Fixed Rotor

10000

8×100ml

13730

R16E-38

Fixed Rotor

4000

12×100ml

2970

R16E-39

Fixed Rotor

8000

4×250ml

9090

R16E-40

Fixed Rotor

7000

6×250ml

8050

R16E-41

Fixed Rotor

7000

4×300ml

8382

R16E-42

Fixed Rotor

6000

6×300ml

6600

R16E-43

Fixed Rotor

12000

24 capillaries

15800

R16E-44

Swing Rotor

15000

4×5ml

19920

R16E-45

Swing Rotor

12000

4×30ml

20090

R16E-46

Swing Rotor

10000

4×50ml

16240

R16E-47

Vertical rotor

16000

16×5ml

16450

R16E-48

Vertical rotor

14000

8×30ml

19750
