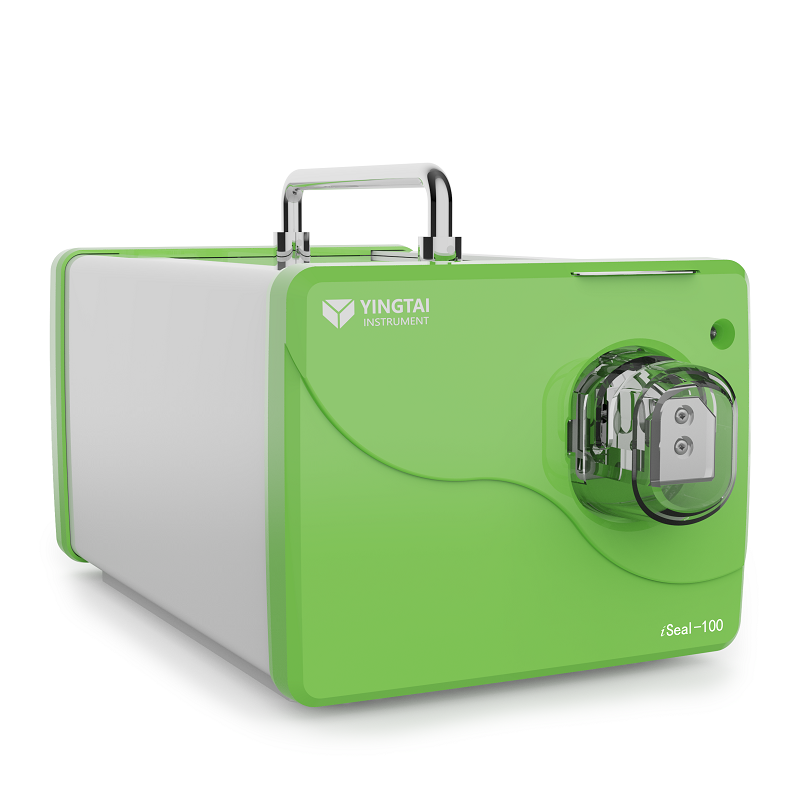

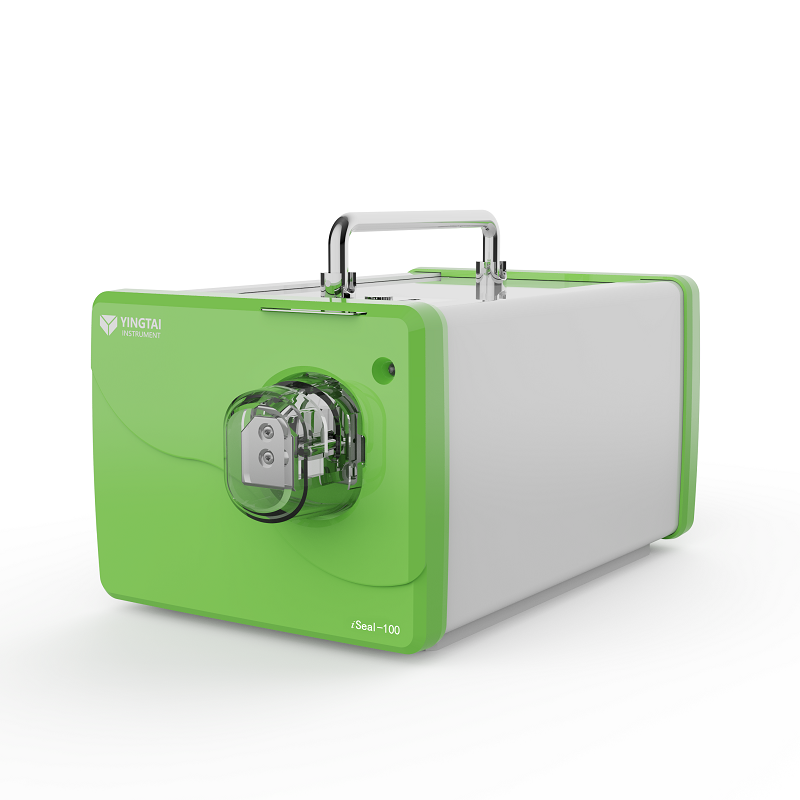

Yingtai Iseal-100 Tube Sealer

A device that uses the principle of high-frequency oscillation to generate heat through the friction of molecules in PVC hoses, thereby melting the PVC hose and achieving the sealing effect. This device is also referred to as a pipe sealing machine in some places.


  • Iseal-100

  • Yingtai

Availability:
Quantity:

Technical Parameters


Heat Sealing Time:0.5~2sHeat Sealing Tube
Outer Diameter:

2~6mm
Indicator Light Colors:Red/BlueRF Frequency:40.68MHz
Grounding Protection:Class IPower Supply100V~120V/220V~240V AC
Power Consumption:250W during operation,10W in standbyDimensions:175×155×315mm
Weight:5.5kgFuse:3A/250VAC 5*20mm
Operating Temperature:0~40℃Storage Temperature:-20~70℃
