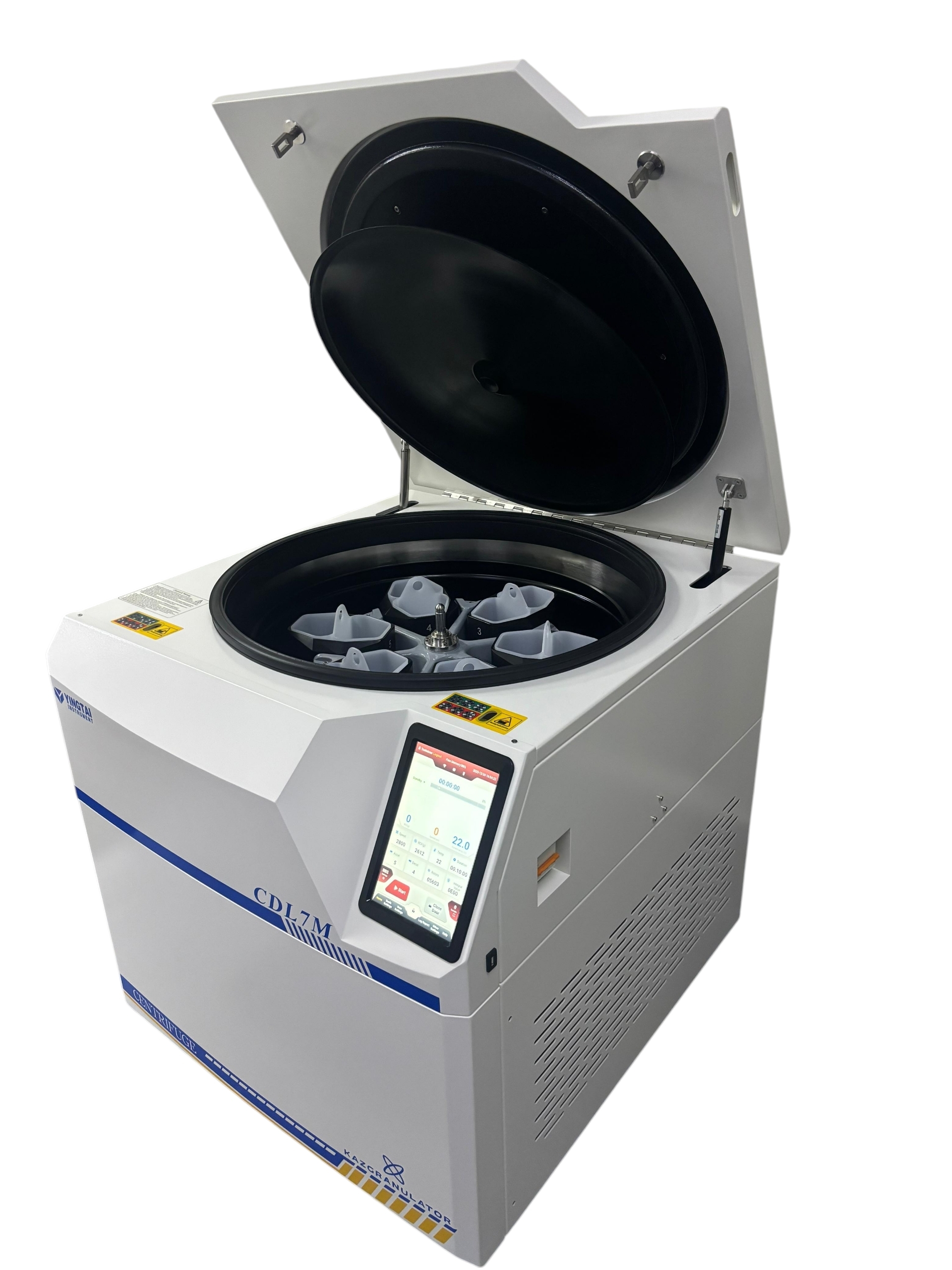

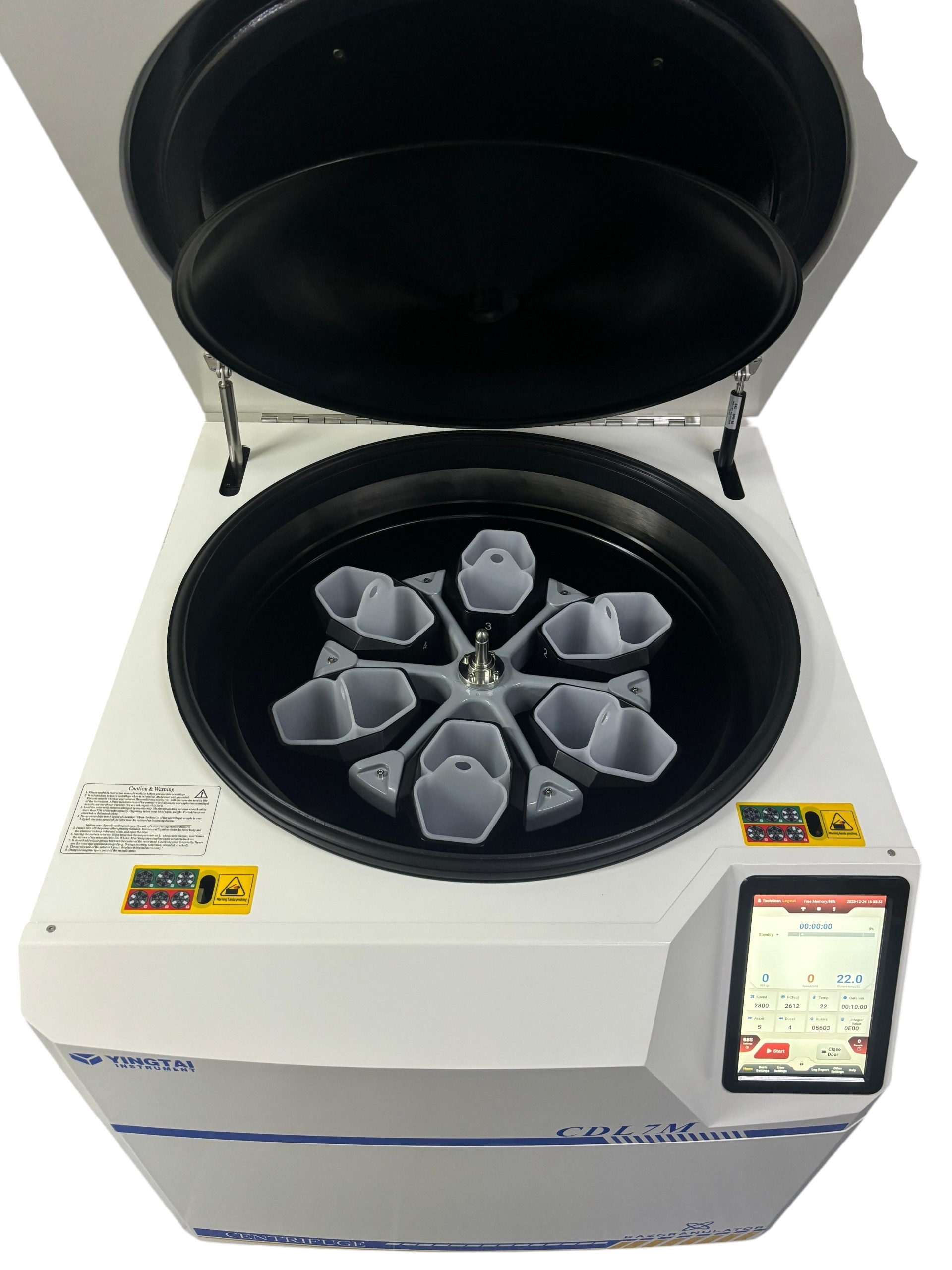

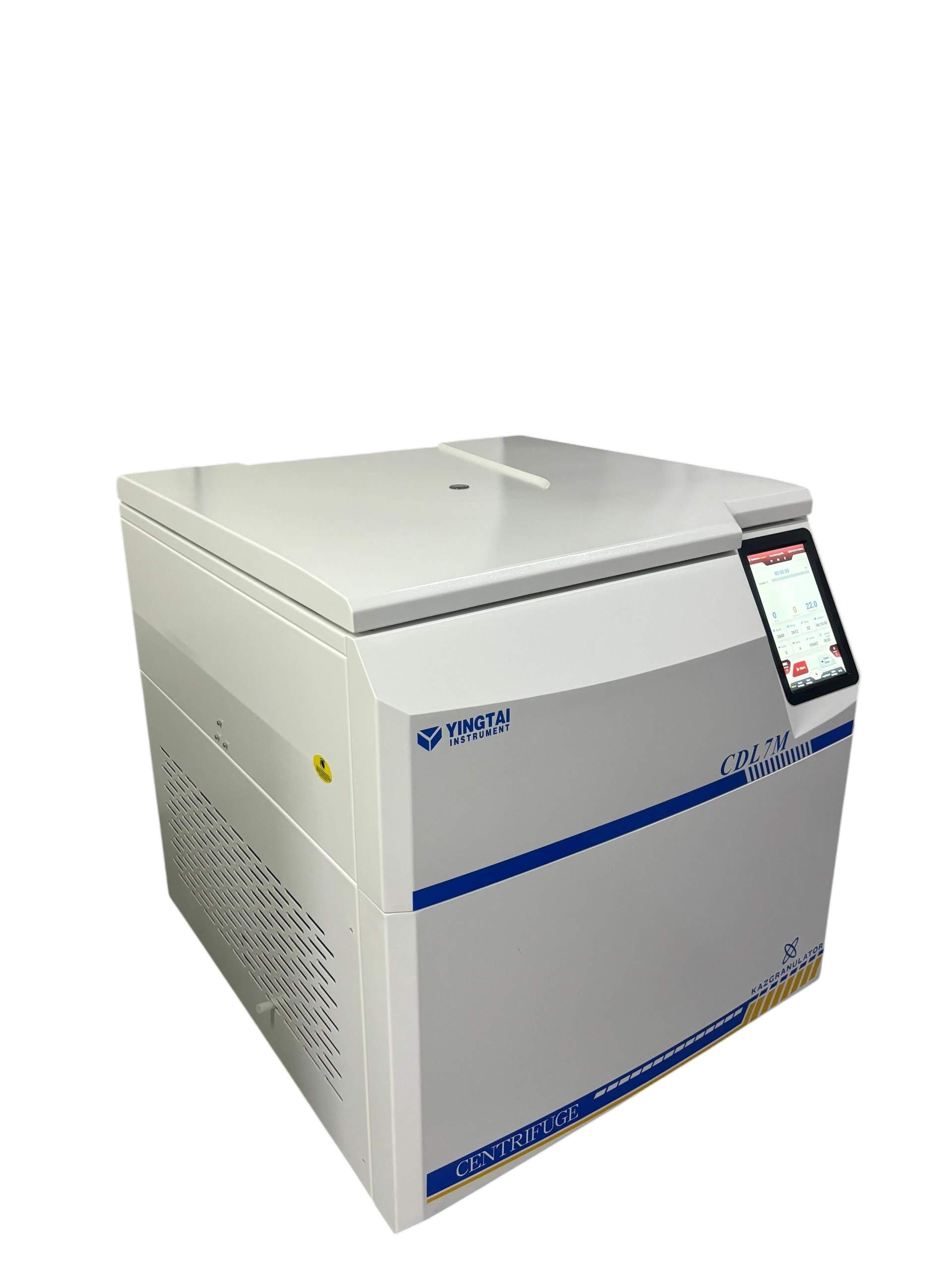

KAZGRANULATOR CDL7M refrigerated medical laboratory centrifuge

1.Brushless frequency motor, in great torque, free maintenance, no power pollution, quick in speed up and down.
2.10” LCD (45° viewing angle) Touch screen display which indicates the program, rotor No, speed, time, RCF and temperature.
3.CFC-free refrigerant, pre-cooling function ,double cycle cooling, cold and hot alternating easily, free environment pollution and precise in temperature control.
4.Microprocessor-controlled temperature control system with automatic stabilization (PID controller for fast cooling - 15 minutes)
5.Microprocessor control, 100 programs in store.
6.10 kinds of acceleration and deceleration for your choice.
7. Over speed and imbalance protection.
8.Speed, RCF, time, temperature can be edited during running.
9.High quality steel centrifuge body , stainless steel chamber, built-in stainless steel explosion-proof protect sleeve, 3 tiers protection, safe and reliable.
10.Automatic door open & close, as well as anti-pinch function (Optional).
11.Automatic rotor recognition function (Optional).
12.Multi-level user management, Effectively protects personal data.
  • CDL7M

  • Yingtai (Can do OEM)

Availability:
Quantity:

CDL7M Technical Parameter

Max. Speed

8000rpm

Max. RCF

14551×g

Max. Capacity

6×2400ml (12*500ml blood bag)

Time Range

1~99h59min59s

RPM/RCF Convert

Yes

Noise (dB)

≤ 65

Temperature

-20 ~ 40℃

Acc/Dec

10 Kinds

Speed Accuracy

±10r/min

Temperature Accuracy

±1

Voltage(V/Hz)

AC 380V 50HZ/60HZ

Size (W x D x Hmm)

900x1050x1020mm

with lid open 1780mm height

Packing Size (W x D x Hmm)

1100*1300*1750mm

Net Weight(Kg)

670KG

Gross weight (Kg)

760KG

Certificates

CE,ISO & Calibration report are available



Matched Rotors for CDL7M

Order No.

Rotor No.

Max Speed (rpm)

Max Volume (ml)

Max.RCF×g

7M-1

Swing Rotor

4000

6×2400ml

5331

7M-2

Angle Rotor

8000

6×1000ml

14551

7M-3

Swing Rotor

4200

2×6×1000ml

5680
