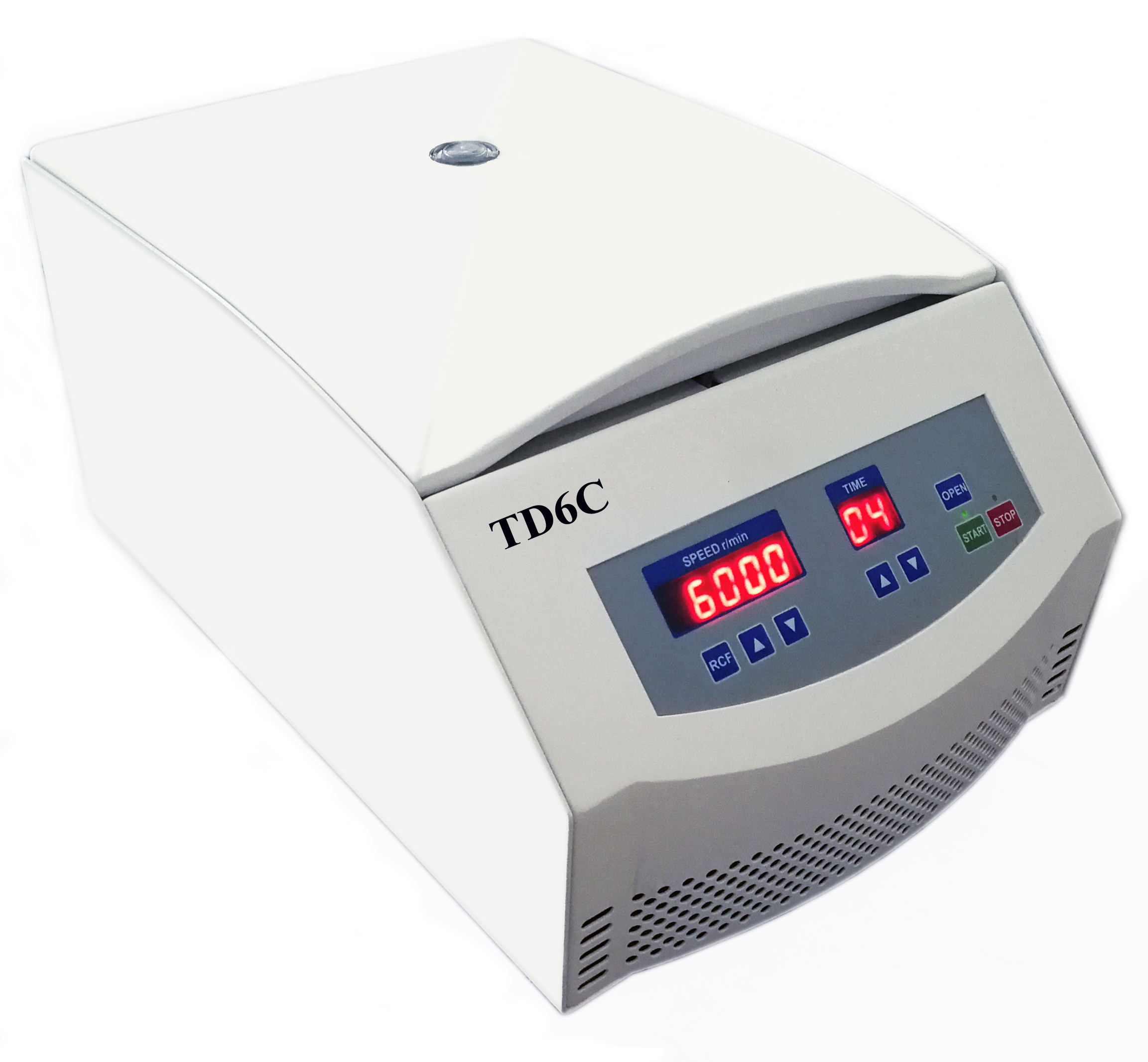

TD6C table top low speed centrifuge

Application:
Widely used in hospital ,clinic ,laboratory for separation of different components of blood, urine etc by density.
Features
1.Microprocessor control, less noisily.
2.Brushless motor, free maintenance, no powder pollution, quick in speed up and down. 10 kinds of acceleration and deceleration for your choice.
3.The flexible axle driven system which drive the rotor directly, smooth in operation and small vibration.
4.There are many rotors for your choice, suitable for different specifications meet customers’ different requirements of separation.
5.Micro computer control system, LED display the RCF，time and speed.
6.Electric lid lock to prevent opening during centrifuge running with emergency unlock mechanism.
7.Two hinges on each machine to prevent door from falling .
8.Compact design, over speed and imbalance protection.
9.Stainless steel chamber which is alcohol resistance. Air cooling heat dissipation system controls the machine's temperature rise.
Availability:
Quantity:
Inquire Add to Basket

TD6C Technical Parameters:


Max. Speed

6000rpm

Max. RCF

3660×g

Max. Capacity

6×100ml

Time Range

0~99min

RPM/RCF Convert

Yes

Noise (dB)

≤ 55

Temperature

Normal

Acc/Dec

10 Kinds

Speed Accuracy

±20r/min

Temperature Accuracy

/

Voltage(V/Hz)

AC 220V/110V  50HZ/60HZ

Size (W x D x Hmm)

485×320×255mm

Net Weight(Kg)

21KG

Certificates

CE,ISO & Calibration report are available

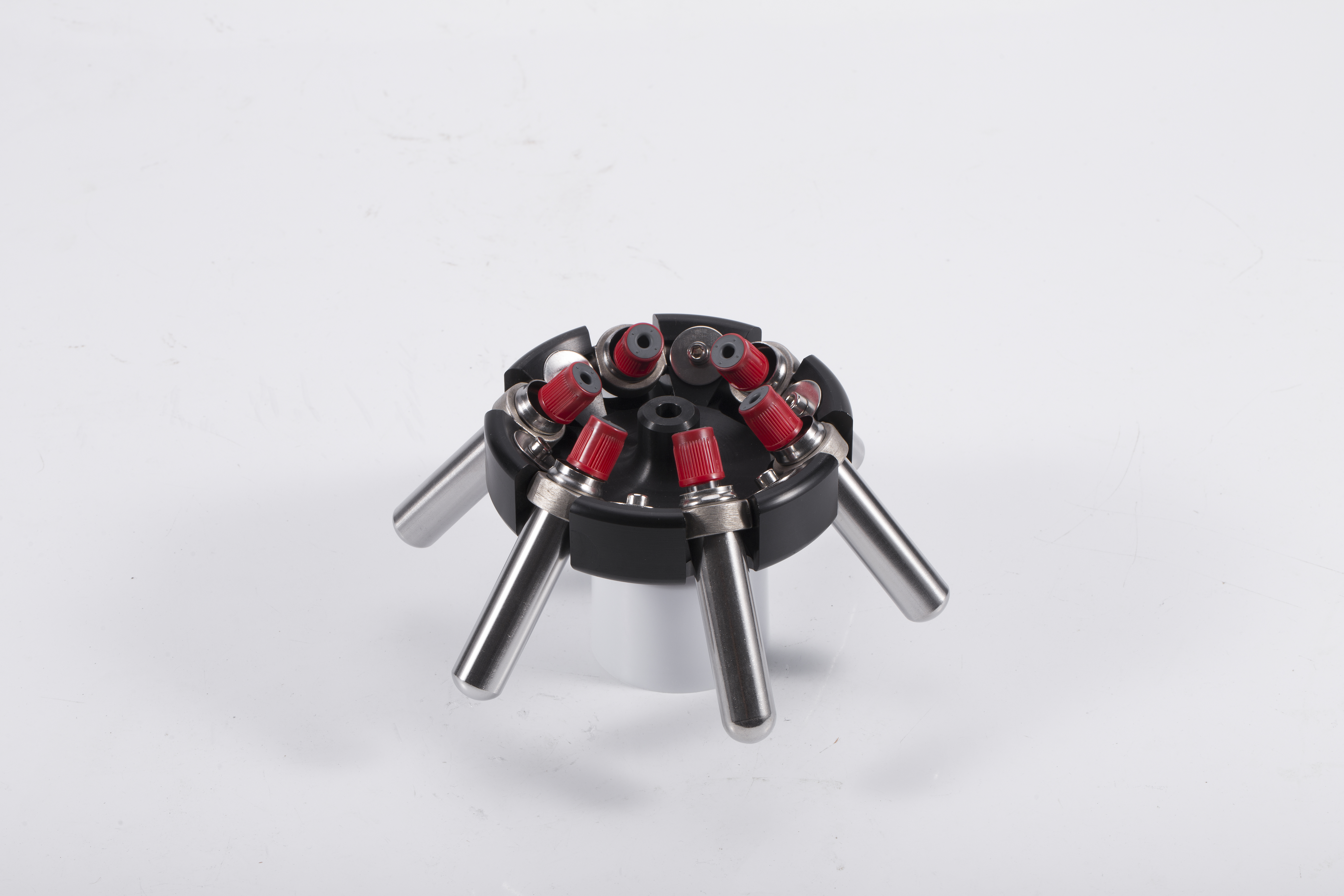

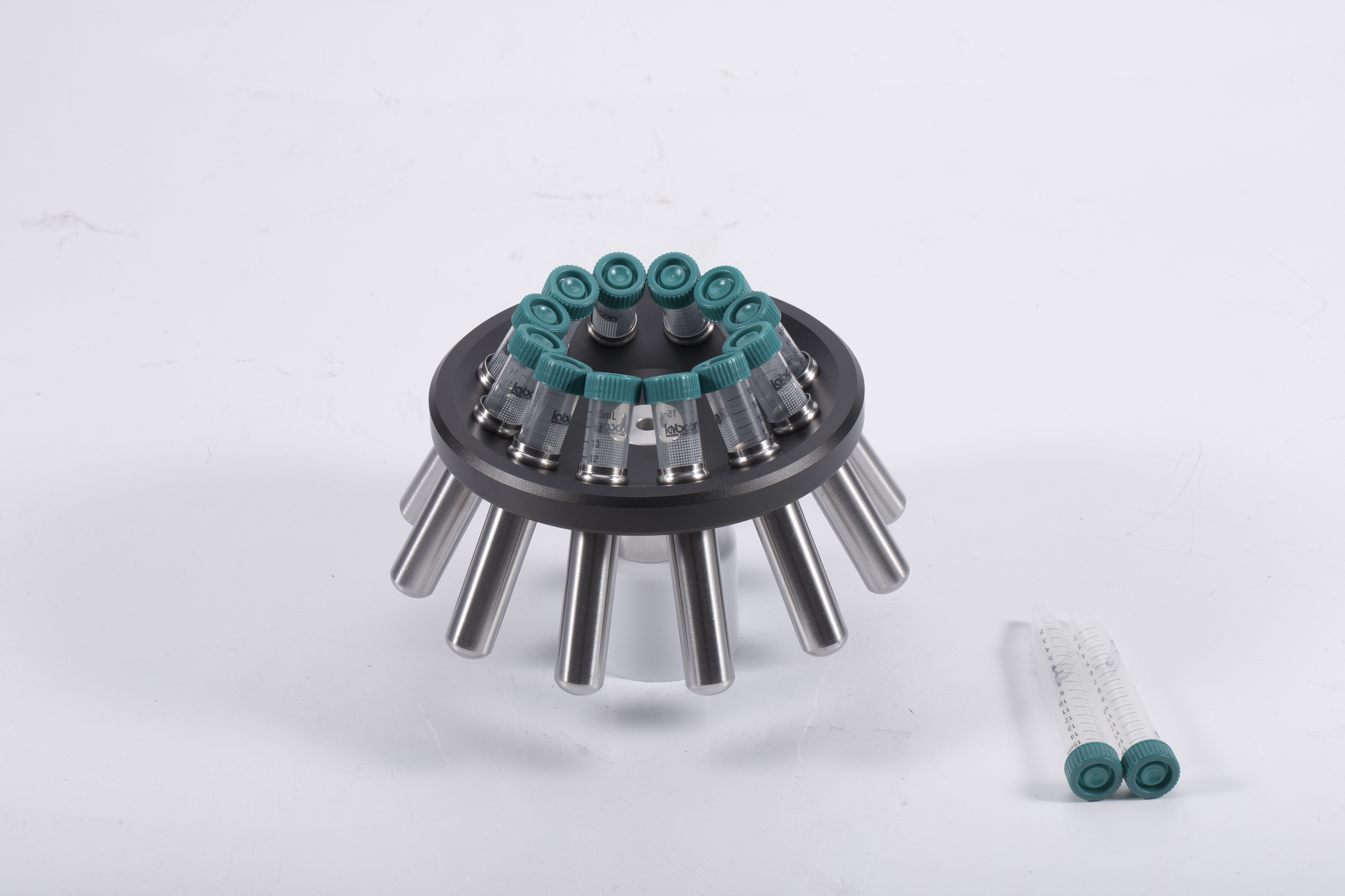

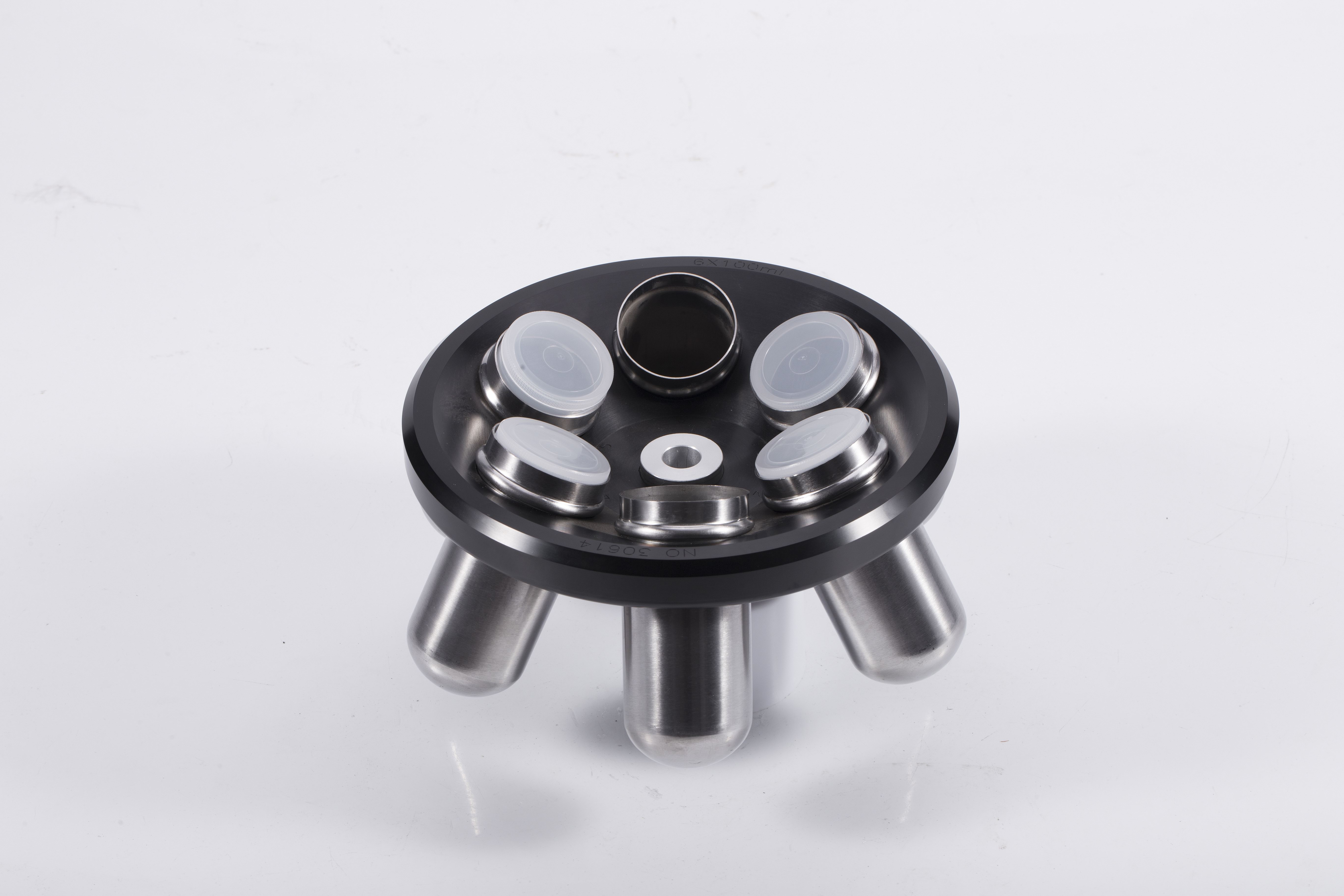

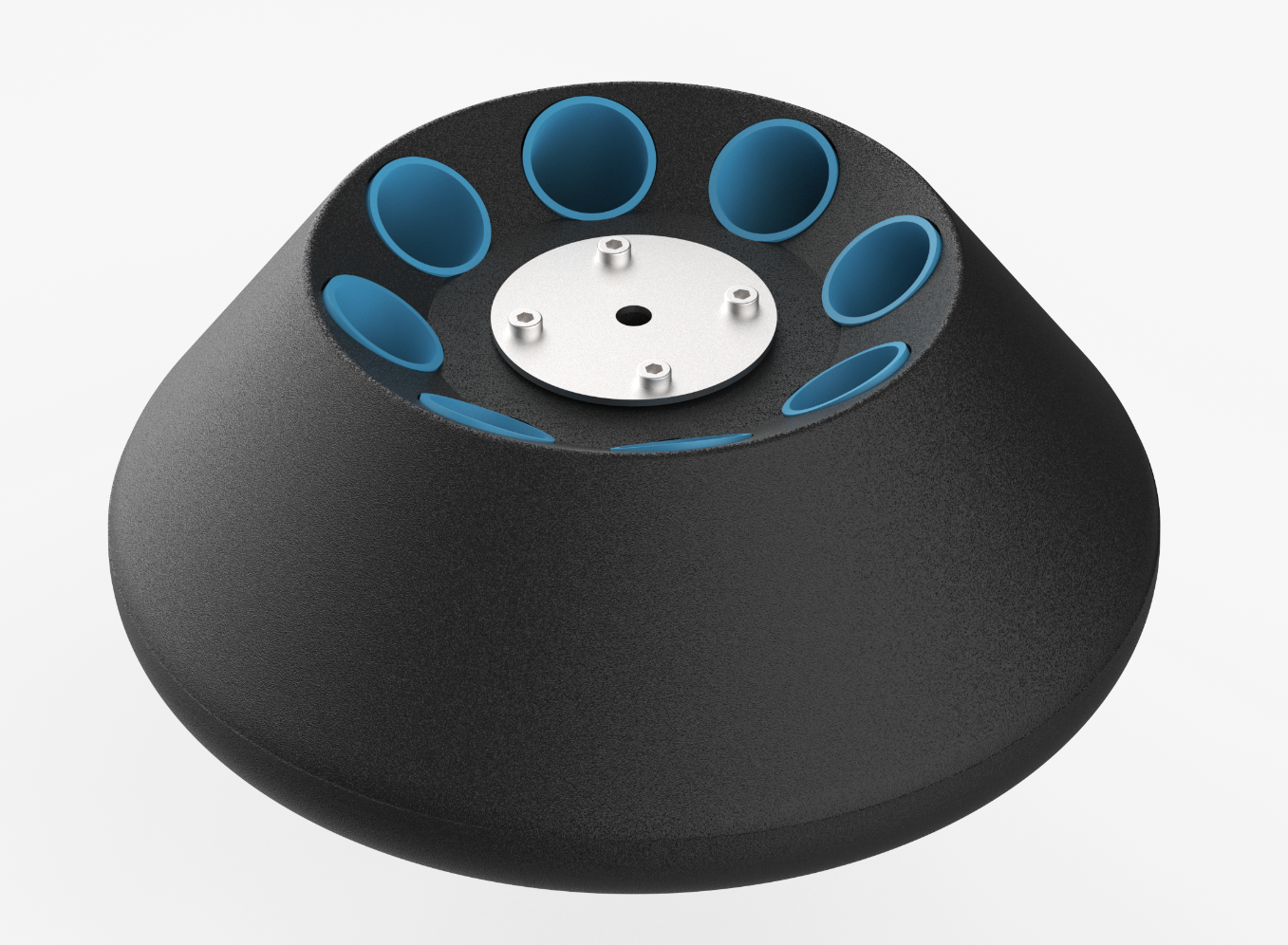

Matched Rotors for TD6C:


OrderNo.

Rotor

MaxSpeed(rpm)

MaxVolume(ml)

Max.RCF（×g）

NO30638

Angle Rotor

6000

6×15

3660

NO30607

Angle Rotor

5000

12×15

3080

NO30611

Angle Rotor

5000

6×50ml

2850

NO30614

Angle Rotor

5000

6×100ml

3130

NO 05242

Swing rotor

4000

6×10ml

2210

NO05221

Swing rotor

5000

6×10ml

3460

NO31685

Angle Rotor

5500

8×50ml

3790

Below adapters are compatible with  NO 31685 8x50ml angle rotor

TD6CAP05

Adapter

Adapters for standard 5ml vacuum tubes( 16pcs as a set) Material:Material :Polyamide

TD6CAP10

Adapter

Adapters for standard 10ml vacuum tubes( 16pcs as a set) Material :Polyamide

TD6CAP15

Adapter

Adapters for standard 15ml conical tubes ( 12pcs as a set)

Material :Polyamide

TD6CAP20

Adapter

Adapters for standard 20ml conical tubes ( 12pcs as a set)

Material :Polyamide
