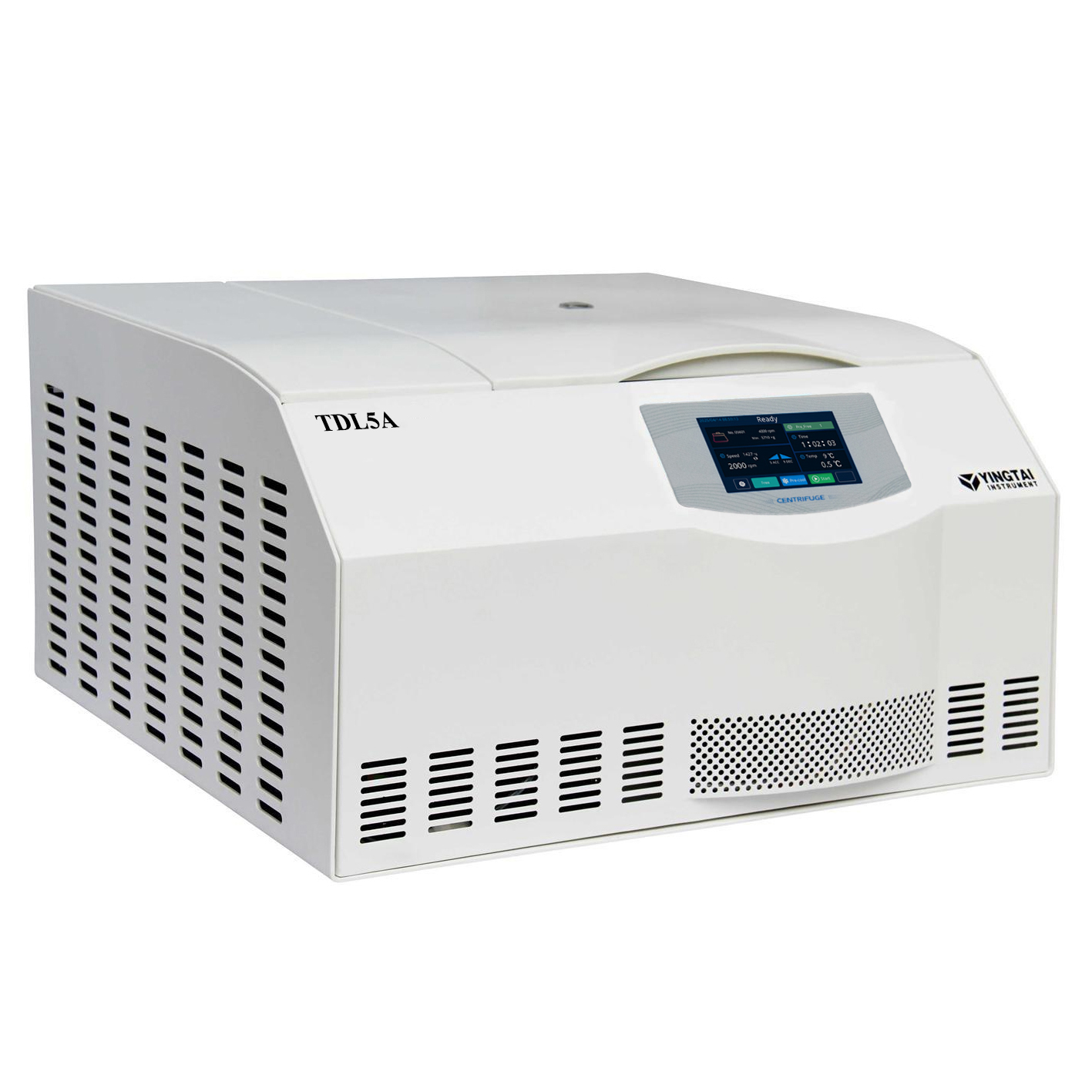

TDL5A Technical Parameter：
Max. Speed | 5000rpm |
Max. RCF | 4730×g |
Max. Capacity | 4×300ml |
Time Range | 1~99h59min |
RPM/RCF Convert | Yes |
Noise (dB) | ≤ 60 |
Temperature | -20℃-40℃ |
Acc/Dec | 10 Rates |
Speed Accuracy | ±20r/min |
Temperature Accuracy | ±1℃ |
Voltage(V/Hz) | AC220V/110V 50HZ/60HZ |
Dimension(L×W×Hmm) | 640×665×420mm |
Net Weight(Kg) | 118kg |
Warranty | 1 Year |
Matched Rotor for TDL5A
Order NO | Rotors | Max speed(r/min) | Volume (ml) | Max RCF(*g) |
5A-1 | Swing Rotort | 4000 | 4×300ml (Round bucket) | 3180 |
5A-2 | 4×300ml (Square bucket) | 3150 |
5A-3 | 4×24×5ml vacuum tube | 2840 |
5A-4 | 4×24×7ml vacuum tube | 3140 |
5A-5 | 4×18×10ml vacuum tube | 3140 |
5A-6 | Swing rotor | 4000 | 4×250ml corning bottles | 3260 |
5A-7 | Microplate centrifuge rotor | 4000 | 2×4×96well | 2910 |
5A-8 | Swing rotor | 5000 | 4×1×50ml | 4730 |
5A-9 | 4×1×100ml | 4730 |
5A-10 | Swing rotor | 4000 | 4×2×100ml | 3200 |
5A-11 | 4×2×50ml | 3200 |
5A-12 | 4×12×10ml vacuum tube | 2880 |
5A-13 | 4×12×7ml vacuum tube | 2760 |
5A-14 | 4×12×5ml vacuum tube | 2480 |
5A-15 | 4×8×10/15ml | 3200 |
5A-16 | 4×6×10/15ml | 3200 |
5A-17 | 4×16×5ml vacuum tube | 2530 |
5A-18 | 4×16×7ml vacuum tube | 2890 |
5A-19 | Angle rotor | 5000 | 12×15ml | 3080 |
5A-20 | 24×15ml | 3500 |
5A-21 | 30×15ml | 3830 |
5A-22 | 12×50ml | 3860 |
5A-23 | 4000 | 24×50ml | 2970 |
5A-24 | 5000 | 6×100ml | 3130 |
5A-25 | 4000 | 12×100ml | 2970 |
5A-26 | Vacuum tube universal rotor | 4000 | 4×16×5/7ml vacuum tube | 2930 |
5A-27 | Automatic decapping rotor | 4000 | 4×16×5/7ml vacuum tube | 2930 |
