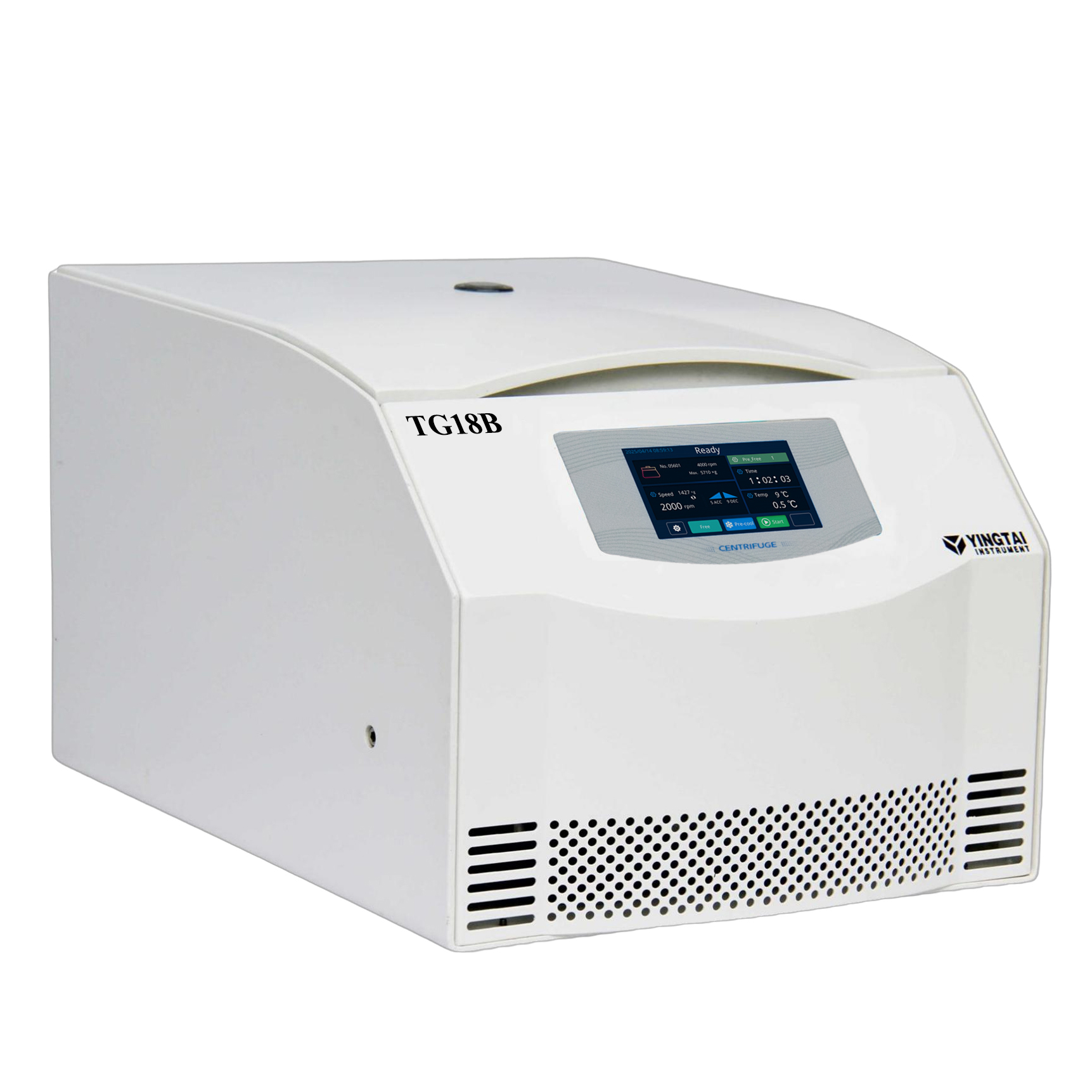

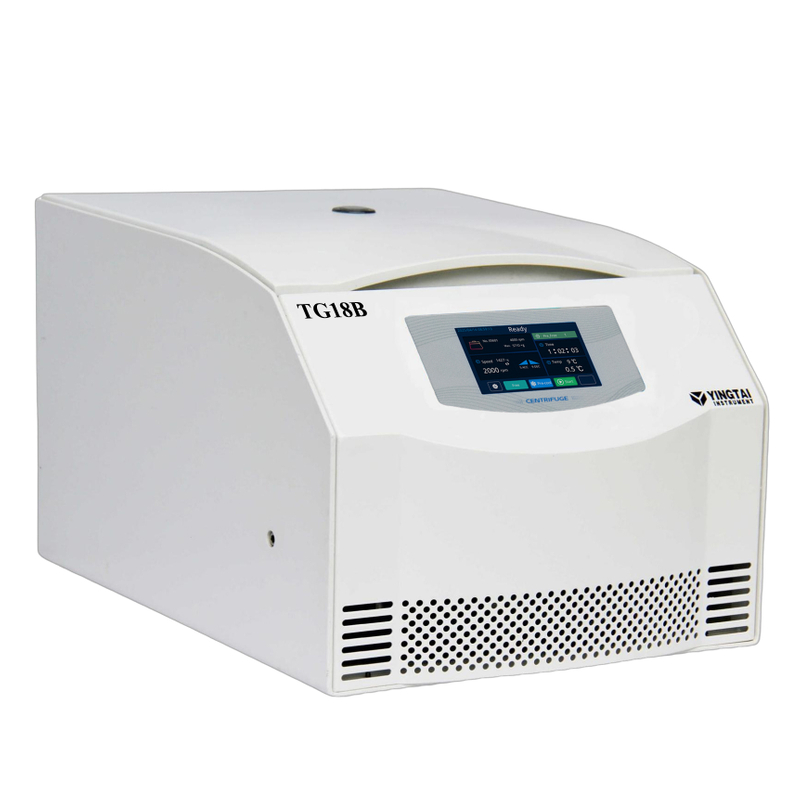

TG18B Table Top High Speed Centrifuge

1.Widely used for laboratory, chemistry and so on.
2.10 kinds of acceleration and deceleration
3.More than 10 rotors for your choice
4.Low noise, compact design and small vibration
5.High speed and low speed rotor in one centrifuge.
6.User-friendly LCD touch screen version display speed and time parameters.
7.Brushless frequency motor which in great torque, no powder pollution, free maintenance, quick in speed up and down.
8.Imbalance sensor and over speed sensor, the centrifuge body is made of high-quality steel, very safe.

  • TD18B

  • Yingtai

Availability:
Quantity:
Inquire Add to Basket

TG18B  Table Top High Speed Centrifuge


TG18B Technical Parameter：

Max. Speed

18500rpm

Max. RCF

23990×g

Max. Capacity

4×250ml

Time Range

0~99min

RPM/RCF Convert

Yes

Noise (dB)

≤ 55

Temperature

Ambient

Acc/Dec

10 Kinds

Speed Accuracy

±20r/min

Temperature Accuracy

/

Voltage(V/Hz)

AC 220V/110V  50HZ/60HZ

Certificates

CE, ISO & Calibration report are available

Size (W x D x Hmm)

570×400×320mm

Net Weight(Kg)

38KG


Matched Rotors for TG18B

Rotor

Max. Speed（rpm）

Max. Volume（ml)

Max. RCF               （xg)

Swing Rotor-Round Cup

4000

4x250

2880

Swing Rotor - Square Cup

4000

4x250

2830

Swing Rotor

4000

4×16×7

2860

4×16×5

2470

4×13×10

2830

Microplate (Frame Type)

4000

2×3×96 well

2310

Swing Rotor

5000

4×1×50

4730

4×1×100

4730

Swing Rotor

4000

4×2×100

3020

4×2×50

3020

4×4×15

3020

4×6×15

3020

4×4×10/7

2770

4×4×5 Vacuum Tube Adapters

2360

4×6×10/7

2770

4×6×5 Vacuum Tube Adapters

2360

4×8×10/7

2770

4×8×5 Vacuum Tube Adapters

2360

4×12×5 Vacuum Tube

2480

4×12×7 Vacuum Tube

2760

4×10×10 Vacuum Tube

2880

Angle Rotor

14000

4×8PCR

12070

Angle Rotor

13000

6×8PCR

16080

Angle Rotor

14000

8×8PCR

13390

Angle Rotor

13000

12×8PCR

17220

Angle Rotor

14000

40×0.5

19960

Angle Rotor

18500

12×1.5

23990

Angle Rotor

15000

24×1.5

20600

Angle Rotor

13500

30×1.5

19340

Angle Rotor

11000

48×1.5

12840

Angle Rotor

15000

16×5

19350

Angle Rotor

14000

6×10

16460

Angle Rotor

13000

12×10

17030

Angle Rotor

11000

16×10

13950

Angle Rotor

11000

8×15（Conical）

12730

Angle Rotor

9000

12×15

9590

Angle Rotor

5000

24×15

3500

Angle Rotor

5000

30×15

3830

Angle Rotor

12000

6×30

14000

Angle Rotor

12000

6×50（Conical）

16050

Angle Rotor

12000

6×50（Round）

15960

Angle Rotor

5000

12×50

3860

Angle Rotor

11000

4×85

13560

Angle Rotor

10000

4×100

10310

Angle Rotor

8000

6×100

7280

Angle Rotor

12000

24Pcs Capillary

15800

Swing Rotor

15000

4×5

19920

Vertical Rotor

16000

16×5

16450

Vertical Rotor

14000

8×30

19750
