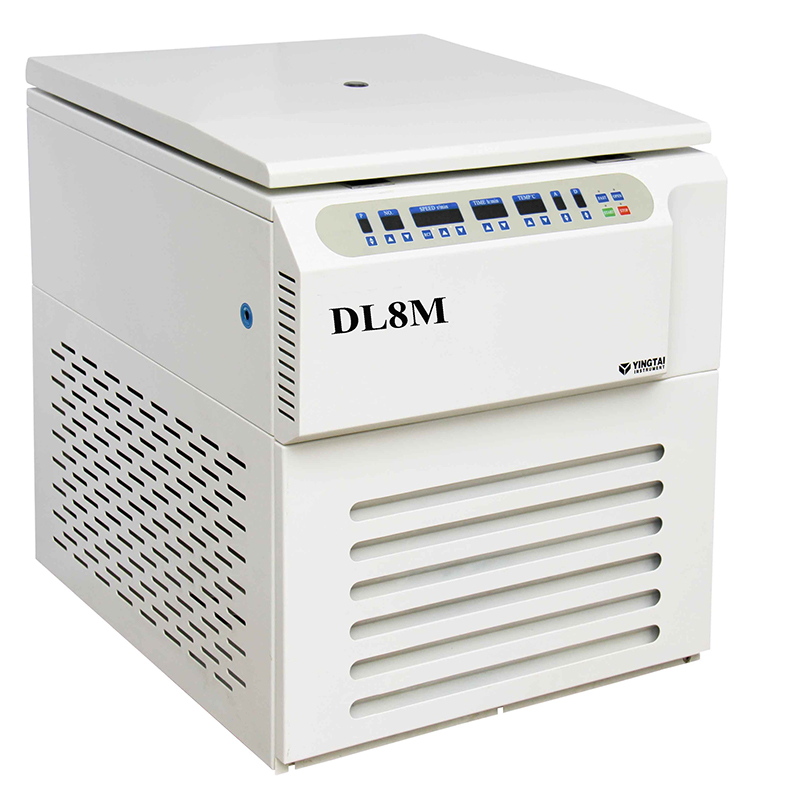

DL8M Large Capacity Refrigerated Centrifuge

DL8M large capacity refrigerated centrifuge max capacity can hold 8x2000ml, can for 16pcs 500ml blood bags, can also for 8 bottles of 2000ml
  • DL8M

  • Yingtai

Availability:
Quantity:

DL8M Largest Capacity Refrigerated Centrifuge


Features

1. Widely used in the field of blood bank, pharmaceutical factory and laboratory.

2. Brushless frequency motor, in great torque, free maintenance, no powder pollution, quick in speed up and down.

3. Digital display which indicates the program, speed, time, RCF, temperature.

4. Micro computer control, there are 10 kinds of program and 10 kinds off acceleration and deceleration for your choice.

5. There are 4 kinds of rotors for your choice.

6. Electric lid lock, compact design, super speed and imbalance protection.

7. The centrifuge body is made of high-quality steel, safe and reliable.

DL8M Technical Parameter

Max. Speed

8000rpm

Max. RCF

14900×g

Max.   Capacity

8×2000ml(16*500ml blood bag)

Time Range

1~9h59min

RPM/RCF Convert

Yes

Noise (dB)

≤ 65

Temperature

-20~40℃

Acc/Dec

10 Kinds

Speed Accuracy

±20r/min

Temperature Accuracy

±1℃

Voltage(V/Hz)

AC   220V/380V 50HZ/60HZ

Dimensions   (L x W x Hmm)

940×890×1000mm /

Net   Weight(Kg)

600KG

Certificates

CE,ISO &   Calibration report are available

Matched Rotors for DL8M

Order No.

Rotor No.

Max Speed (rpm)

Max Volume

(ml)

Max. RCF(×g)

8M-1

Swing Rotor

4000

8 x 2000ml

5716

8M-2

Swing Rotor

4000

6×2400ml

5330

8M-3

Angle Rotor

8000

6×1000ml

14900

8M-4

Swing Rotor

4200

2×6×1000ml

5680
