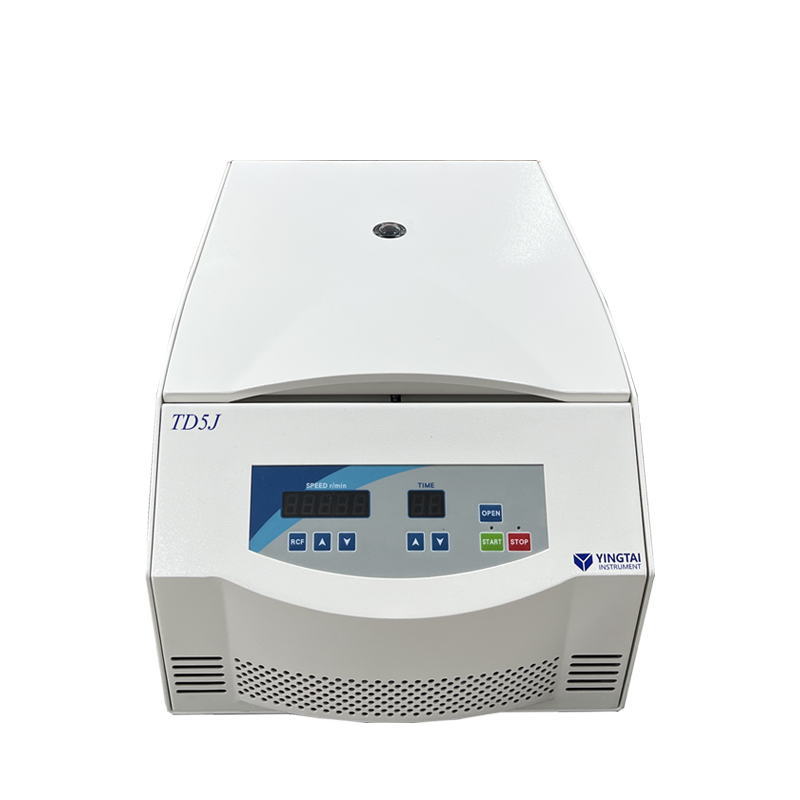

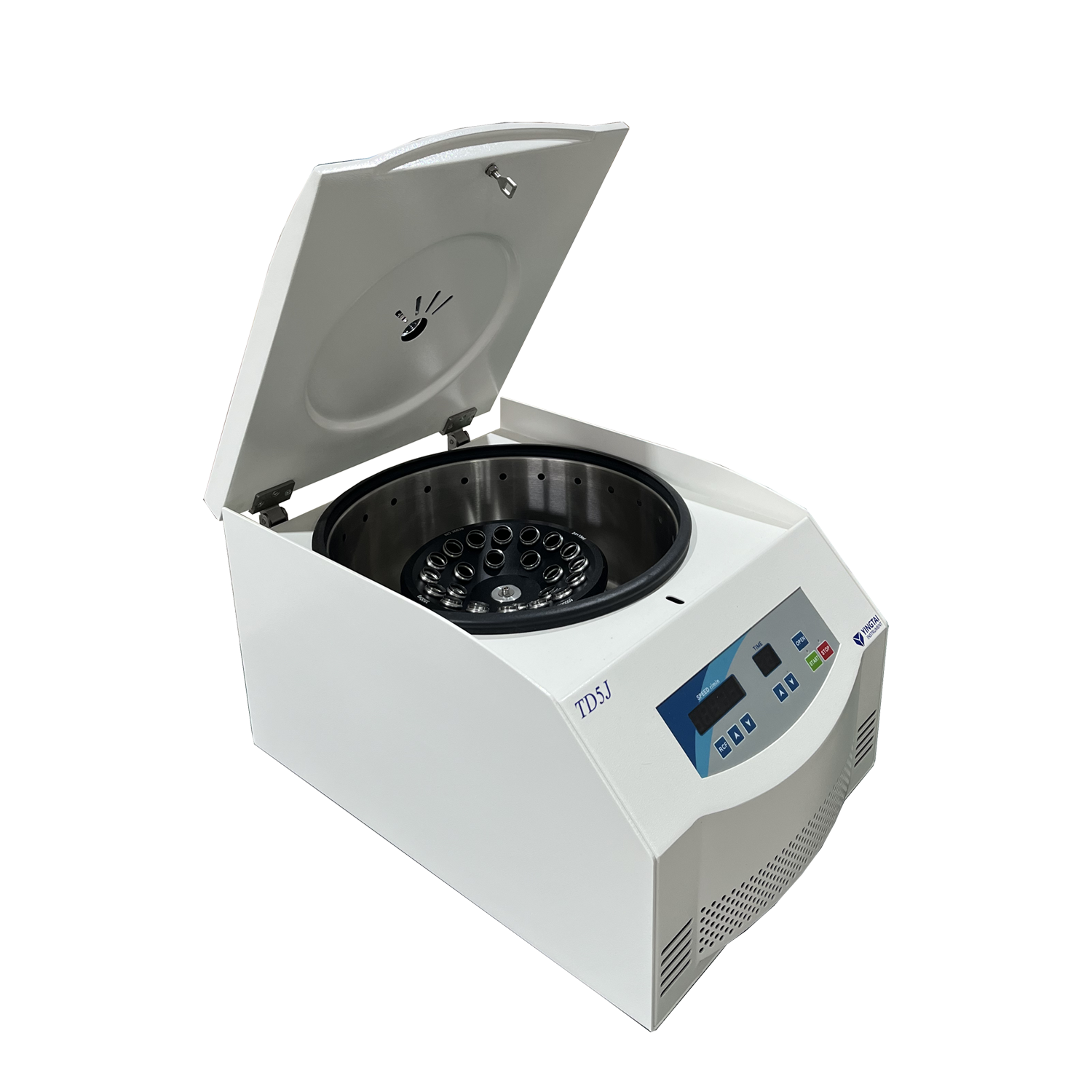

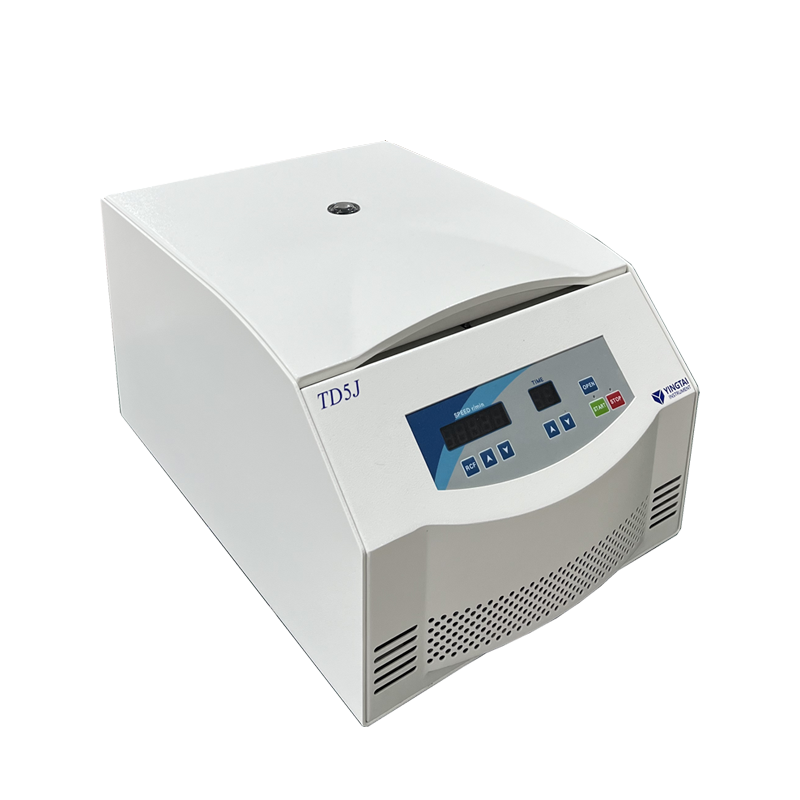

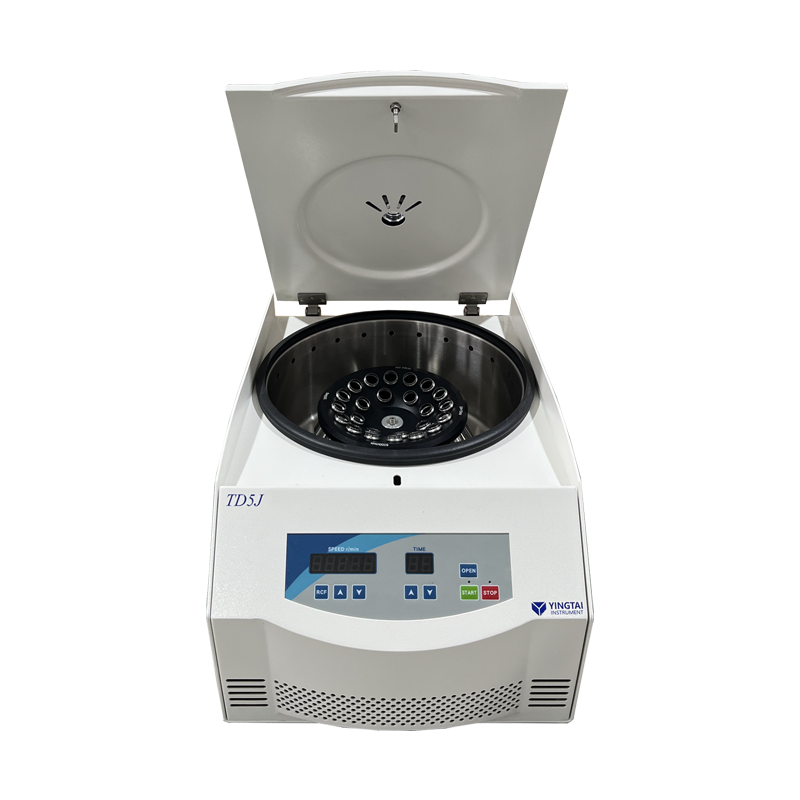

TD5J Table Top Low Speed Centrifuge

1. Microprocessor control, less noisily, it is widely used to qualitative analysis of blood serum, plasma and urea in the fields of hospital, blood center, laboratory and biochemistry.
2. Brushless motor, free maintenance, no powder pollution, quick in speed up and down.
3. The flexible axle driven system which drive the rotor directly, smooth in operation and small vibration.
4. There are many rotors for your choice, suitable for different specifications meet customers’ different requirements of separation.
5. Micro computer control system, LCD display the RCF,time and speed.
6. Electric lid lock, compact design, super speed and imbalance protection.
  • TD5J

  • Yingtai

Availability:
Quantity:

TD5J Table Top Low Speed Centrifuge


TD5J Technical Parameter


Max. Speed

5000rpm

Max. RCF

4140×g

Max. Capacity

24x15ml

Time Range

0~99min

RPM/RCF Convert

Yes

Noise (dB)

≤ 55

Temperature

Normal

Acc/Dec

10 Kinds

Speed Accuracy

±20r/min

Temperature Accuracy

/

Voltage(V/Hz)

AC 220V/110V 50HZ/60HZ

Size (W x D x Hmm)

485×320×255mm

Net Weight(Kg)

28KG

Certificates

CE,ISO & Calibration report are available

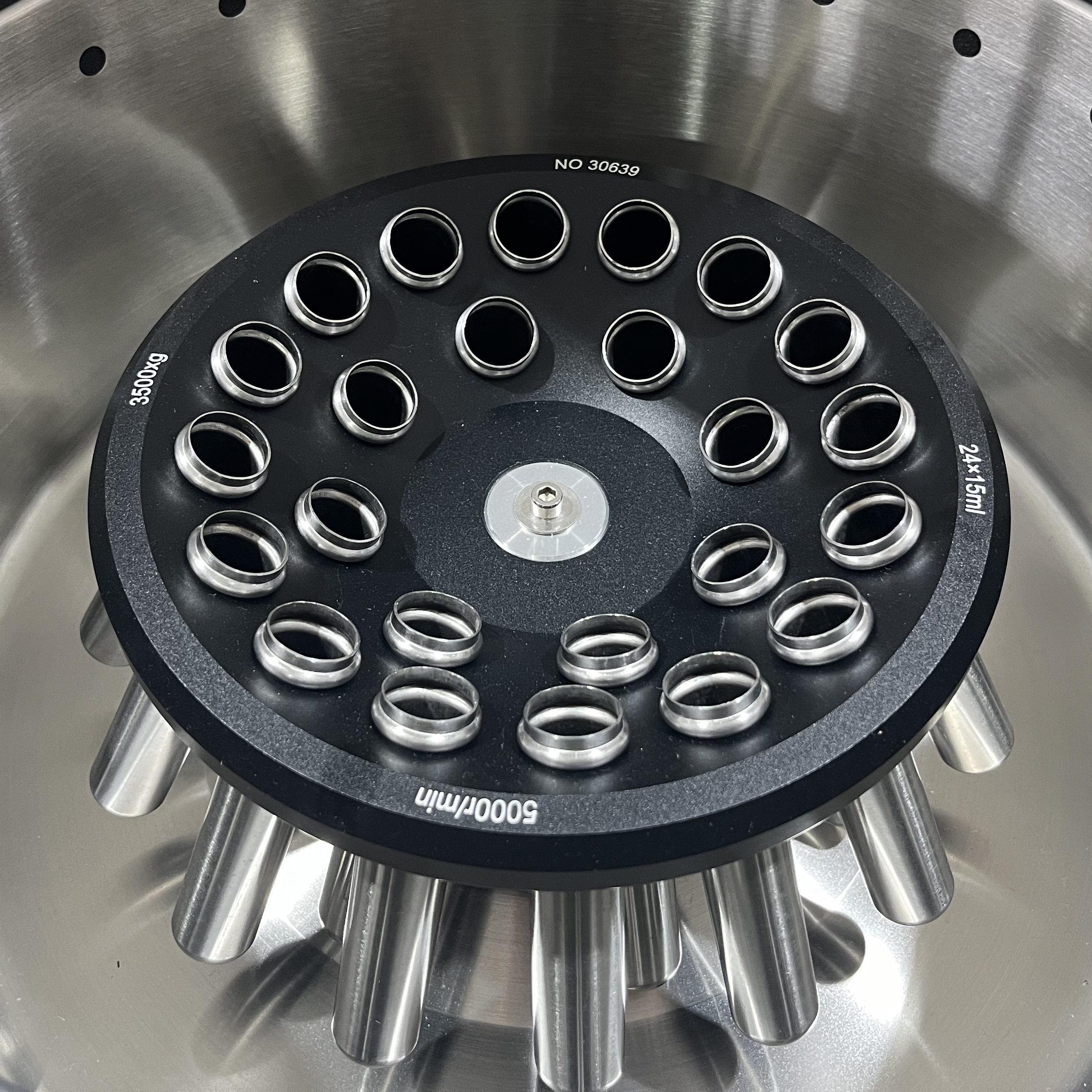

Matched Rotors for TD5J:


Order No.

Rotor No.

Max Speed (rpm)

Max Volume

(ml)

Max. RCF(×g)

NO 05140

Angle Rotor

4000

24×15ml

2240

NO 05146

Angle Rotor

5000

4×100ml

2630

NO 05147

Angle Rotor

5000

6×100ml

3130

NO 05142

Angle Rotor

5000

4×50ml

2520

NO 05143

Angle Rotor

4000

6×50ml

2850

NO 05137

Angle Rotor

5000

6×15ml

2540

NO 05139

Angle Rotor

5000

12×15ml

3080

NO 05222

Swing rotor

5000

8×15ml

4110

NO 05223

Swing rotor

4000

12×10m

4140
