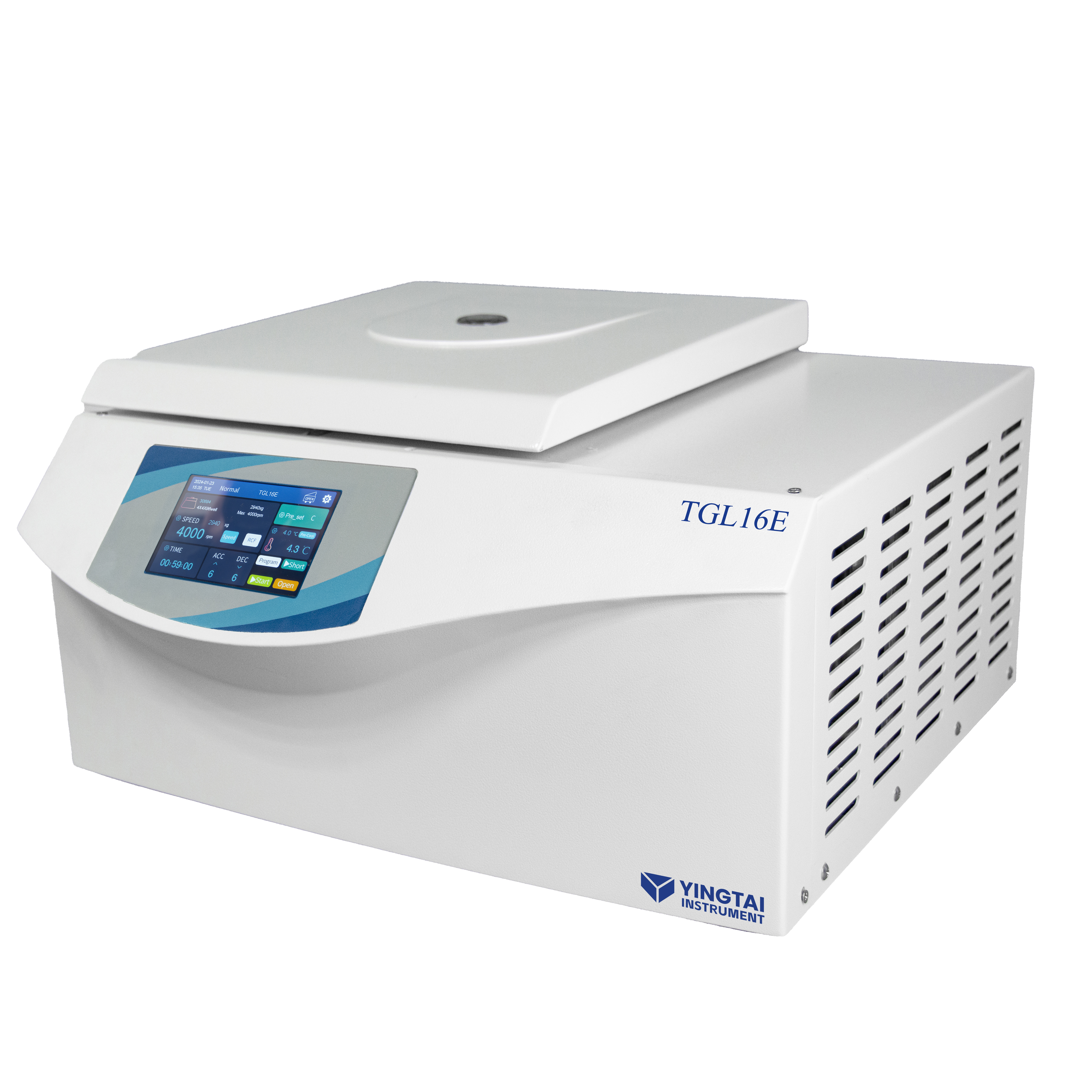

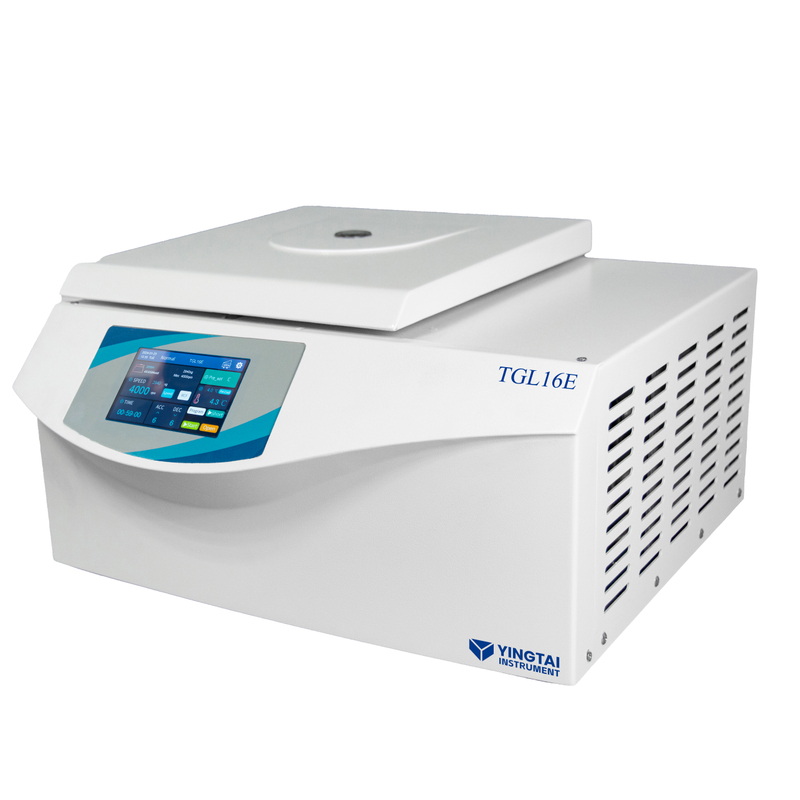

TGL16E LCD Touch Sreen Version Table Top High Speed Refrigerated Centrifuge

Application:
Widely used in the field of biochemistry,biological products,pharmaceutical factory and laboratory.
Features:
1.Brushless frequency motor, in great torque, free maintenance, no powder pollution, quick in speed up and down.
2.Compressors fluorine free,double cycle cooling, cold and hot alternating easily, free environment pollution and precise in temperature control.
3.Microprocessor control, LCD display touch screen which indicates the temperature, speed, time, RCF in operation, speed raising and reducing quickly, operate simply. Running parameter can be edited.
4. 100 kinds of program stored in the memory, 10 kinds of accelerating and decelerating speed for your choice.
5. Automatically electric lid lock, over speed, over temperature protection and imbalance protection.
6.High quality steel centrifuge body , stainless steel chamber, built-in stainless steel explosion-proof protect sleeve , 3 tiers protection,safe and reliable.
7. Rotor is connected to spindle by specialized spring taper sleeve, loading simple and quick, no direction
8. With pre-cooling and get the ideal centrifugation result.
  • TGL16E

  • Yingtai

Availability:
Quantity:

TGL16E LCD Technical Parameters

Max Speed

16000rpm

Max RCF

19040×g

Max Volume

6×10ml

Speed Accuracy

±20r/min

Timer

1~99h99min59sec

Noise

≤ 58dBA

Dimension(L×W×Hmm)

480×480×275mm

Net Weight

43KG

Power supply

220V, 50Hz/60Hz

Temperature Range

-20℃~40℃

Temperature Accuracy

±1℃




Matched Rotor for TGL16E LCD

Order No

Rotor

Max speed (rpm)

Max Volume(ml)

Max RCF (g)

16E-1

Angle rotor

14000

4×8PCR

12070

16E-2

Angle Rotor

16000

12×1.5/2ml

17940

16E-3

Angle Rotor

14000

24×1.5/2ml

17950

16E-4

Angle Rotor

16000

10×5ml

17880

16E-5

Angle Rotor

13000

6×10ml

14190

16E-6

Angle Rotor

16000

40x0.2ml

19040

16E-7

Angle Rotor

13000

40x0.5ml

17210

16E-8

Angle Rotor

13000

30x0.5ml

13900

16E-9

Angle Rotor

16000

24x0.5ml

18480
