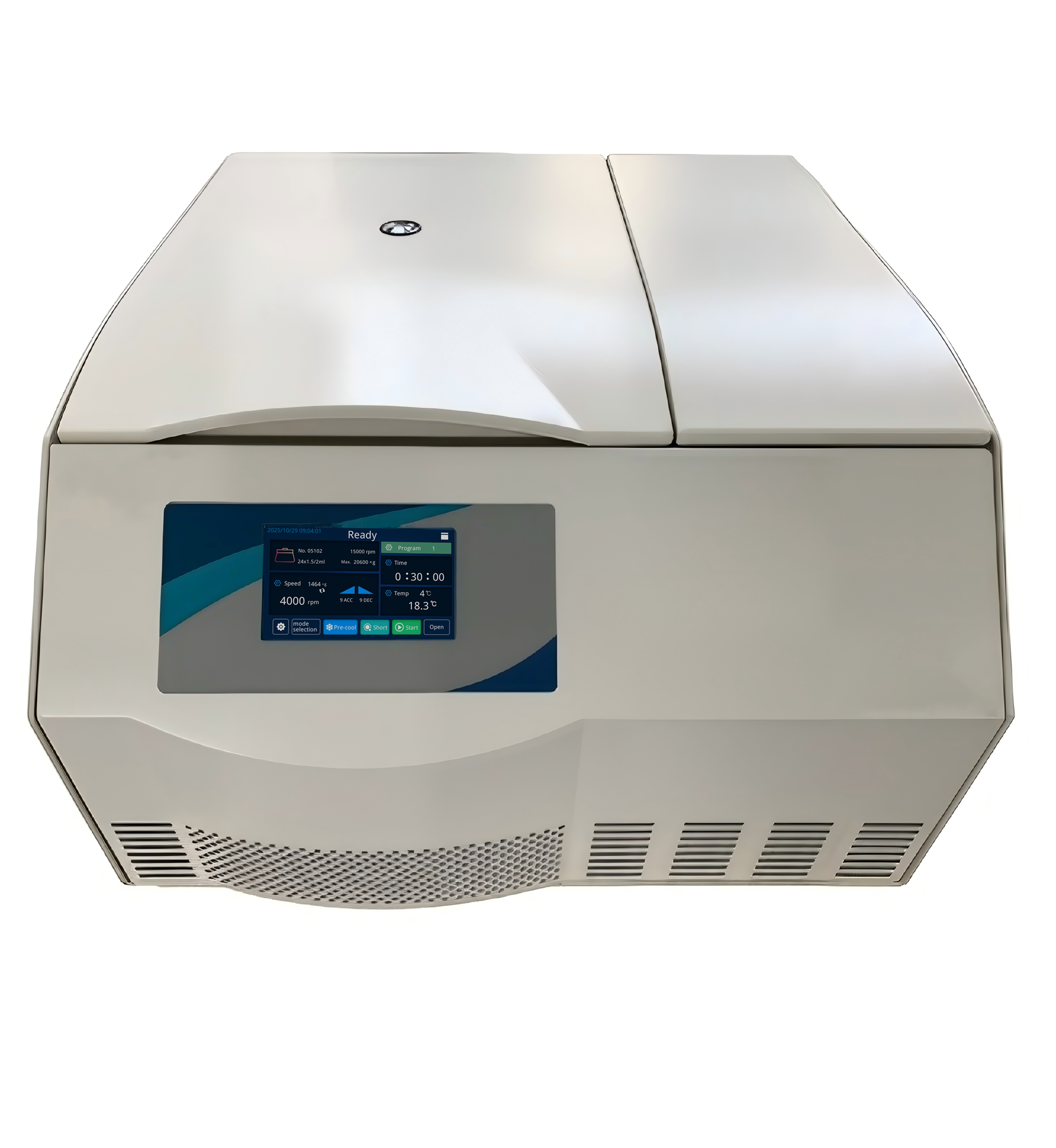

TGL18A Table Top High Speed Refrigerated Centrifuge

1. Widely used for laboratory, chemistry and hospital.
2. 10 kinds of acceleration and deceleration levels for options.
3. Microprocessor-based equipment operation, LCD touch screen displays speed, time and temperature parameters. Continuously adjustable rotation speed with a maximum value up to 18500rpm. Maximum can store 100 programs.
4. Maintenance-free brushless frequency motor which in great torque, no powder pollution, quick in speed up and down.
5. Imbalance detection and over speed detection, electric door lock to prevent it from opening during operation.
6. The centrifuge body is made of high-quality painted steel, with #304 stainless-steel chamber.
7. Automatic self-diagnosis and warning signal about incorrect operation.
8. The system is able to maintain a temperature of 4°C even at maximum speed.
9. The system is capable of reaching a temperature of 4°C above ambient temperature in no more than 10 minutes.
10. With automatic rotor recognition(this is optional, not standard feature).
11. Lid with viewing hole.

  • TGL18A

  • Yingtai

Availability:
Quantity:
Inquire Add to Basket

TGL18A Technical Parameter：

Max. Speed

18500rpm

Max. RCF

23990×g

Max. Capacity

6×100ml

Time Range

1~99h59min59s

RPM/RCF Convert

Yes

Noise (dB)

≤ 60

Acc / Dcc

10 Kinds

Speed Accuracy

±20r/min

Voltage(V/Hz)

AC 220V/110V  50HZ/60HZ 220 V ± 10%, 50/60 Hz, the plug and cable compliant with local standards

Net weight (kg)

90kg

Certificates

CE, ISO & Calibration report are available.

Dimensions

Approximate 620x600x360mm

Temperature Range

-20℃~40℃

Temperature Accuracy

±1℃

Warranty

1 Year

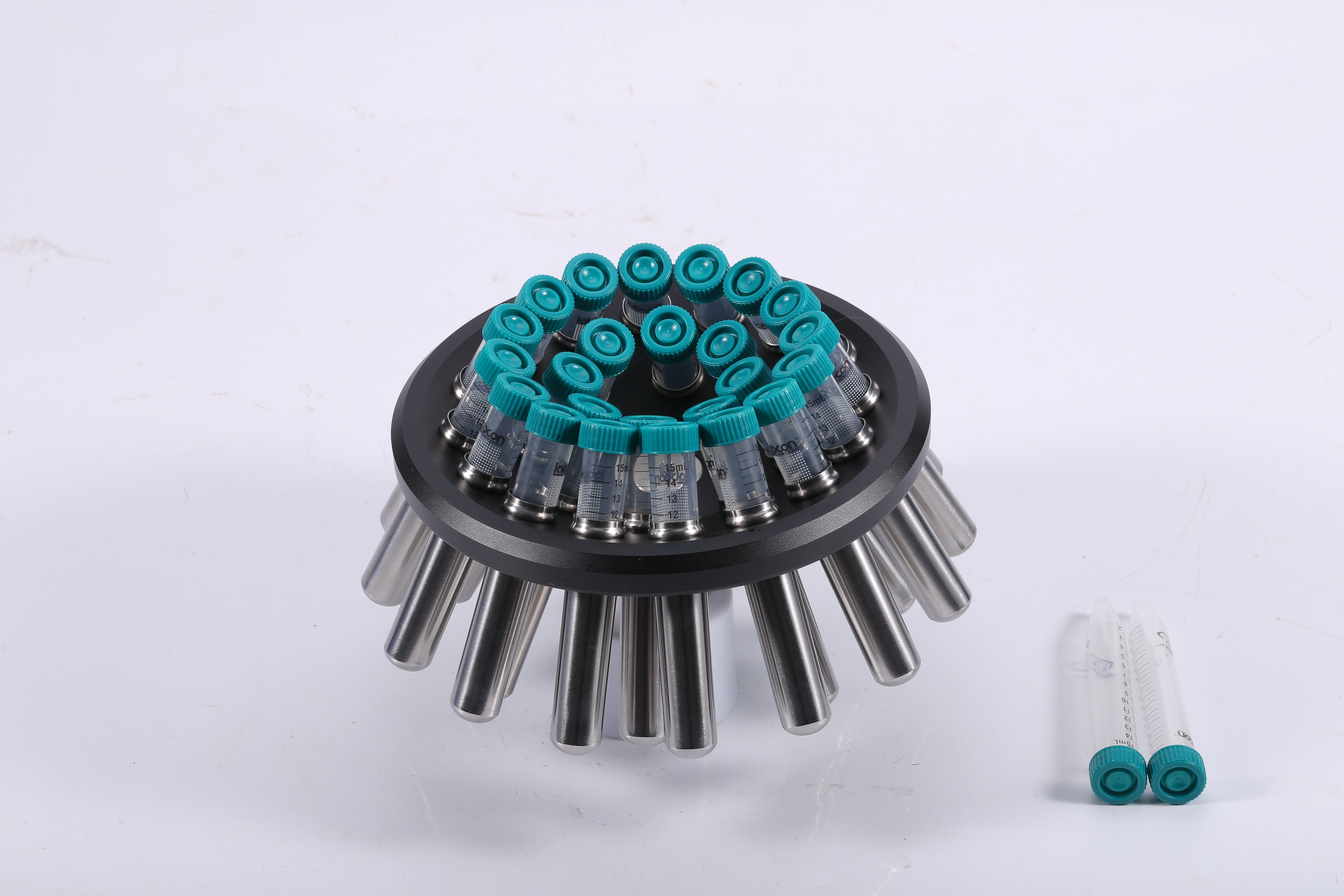

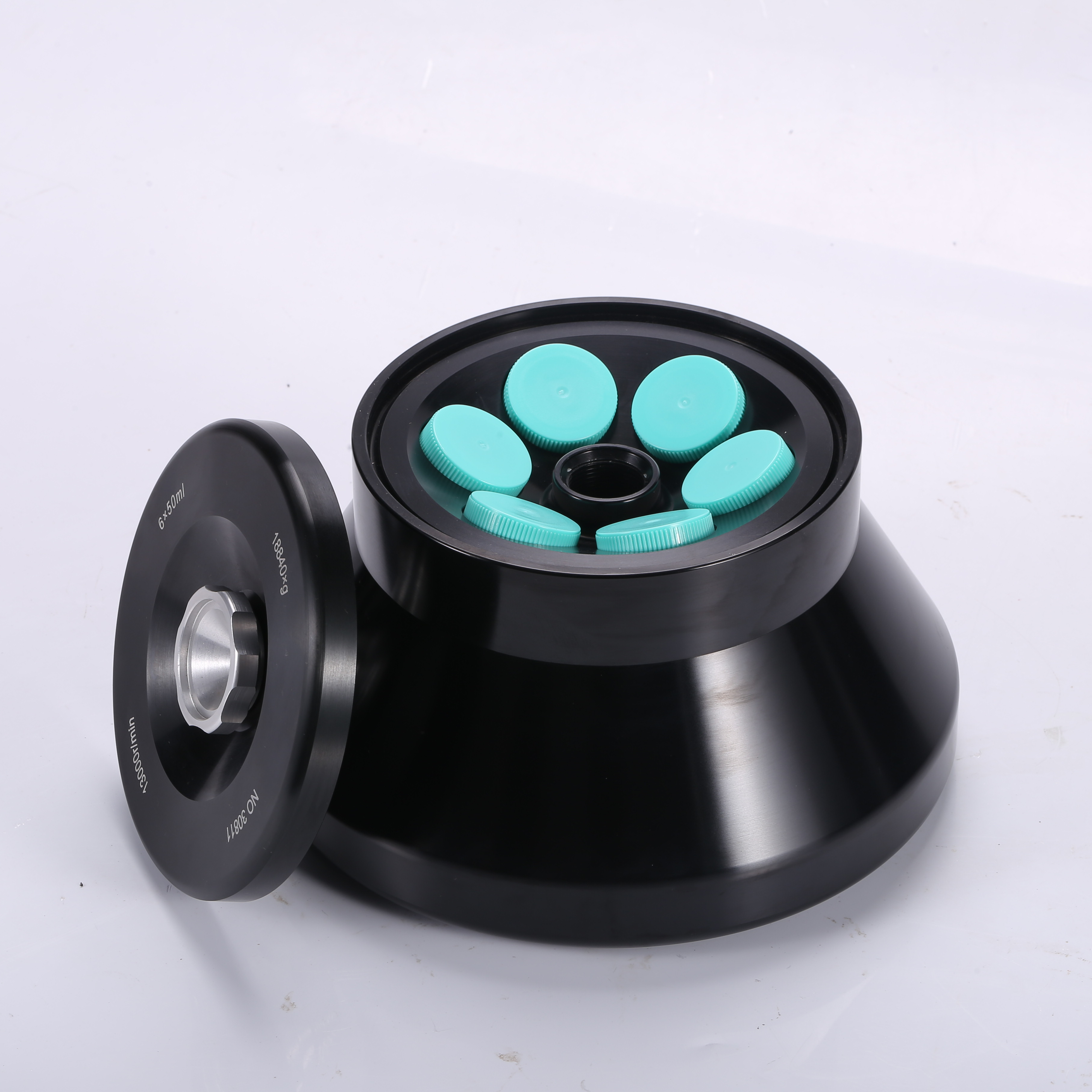

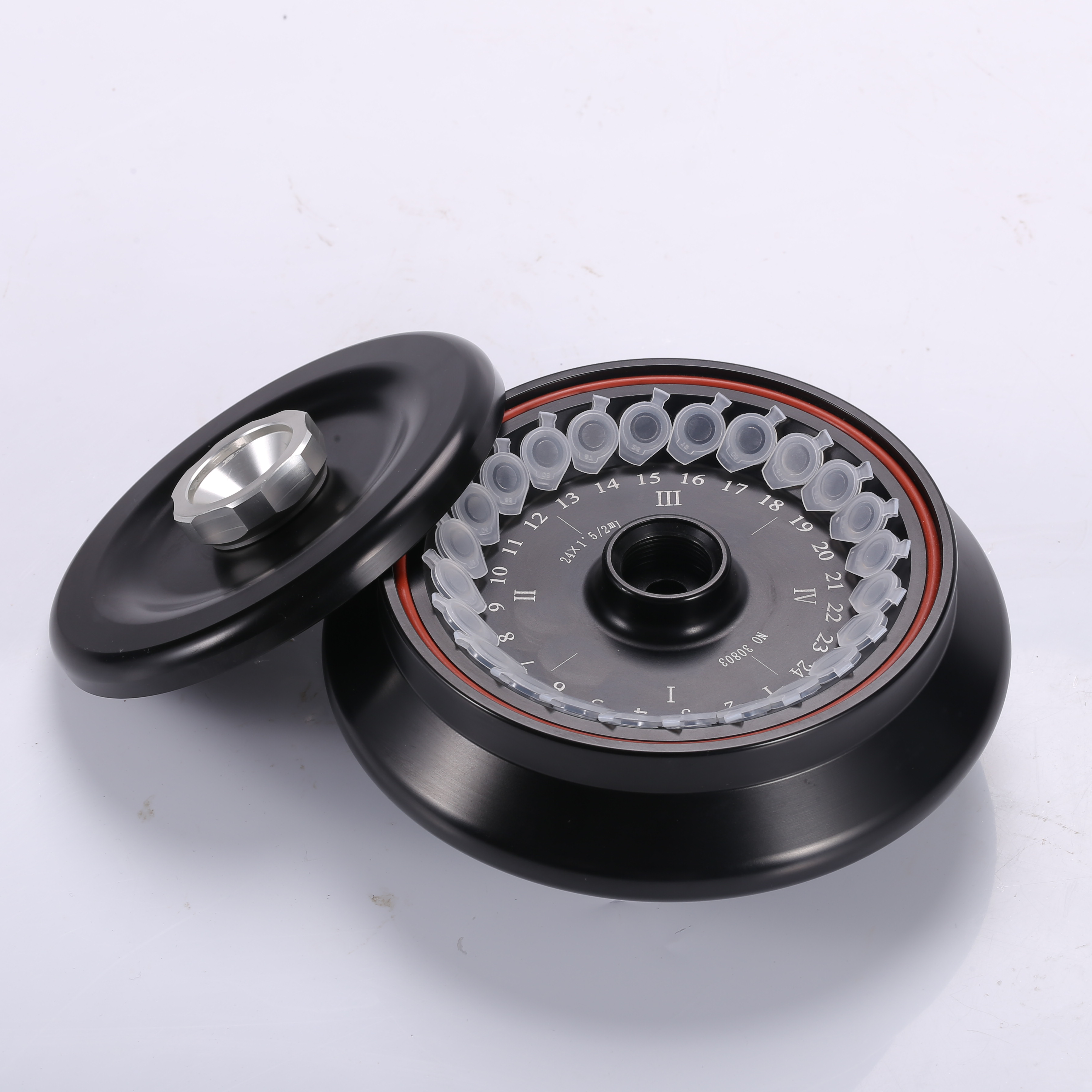

Matched Rotors for TGL18A

Order No.

Rotor

Max Speed (rpm)

Max Volume

(ml)

Max. RCF（×g）

18A-1

Microplate rotor

4000

2×3×96 hole

2020

18A-2

Swing rotor

5000

4×1×50ml

4420

18A-3

5000

4×1×100ml

4420

18A-4

4000

4×2×50

2820

18A-5

4000

4×4×15ml

2820

18A-6

4000

4×6×10/7ml vacuum tube

2580

18A-7

4000

4×6×5ml vacuum tube adapter

2170

18A-8

4000

4×4×10/7ml vacuum tube

2580

18A-9

4000

4×4×5ml vacuum tube adapter

2170

18A-10

Fixed Rotor

14000

4×8PCR

12070

18A-11

Fixed Rotor

13000

6×8PCR

16080

18A-12

Fixed Rotor

14000

8×8PCR

13390

18A-13

Fixed Rotor

13000

12×8PCR

17220

18A-14

Fixed Rotor

14000

40×0.5ml

19960

18A-15

Fixed Rotor

18500

12×1.5ml

23990

18A-16

Fixed Rotor

15000

24×1.5ml

20600

18A-17

Fixed Rotor

13500

30×1.5ml

19340

18A-18

Fixed Rotor

11000

48×1.5ml

12840

18A-19

Fixed Rotor

15000

16×5ml

19350

18A-20

Fixed Rotor

14000

6×10ml

16460

18A-21

Fixed Rotor

13000

12×10ml

17030

18A-22

Fixed Rotor

11000

16×10ml

13950

18A-23

Fixed Rotor

11000

8×15ml

12730

18A-24

Fixed Rotor

9000

12×15ml

9590

18A-25

Fixed Rotor

5000

24×15ml

3500

18A-26

Fixed Rotor

5000

30×15ml

3830

18A-27

Fixed Rotor

12000

6×30ml

14000

18A-28

Fixed Rotor

12000

6×50ml(falcon)

16050

18A-29

Fixed Rotor

12000

6×50ml(round)

15960

18A-30

Fixed Rotor

11000

4×85ml

13560

18A-31

Fixed Rotor

10000

4×100ml

10310

18A-32

Fixed Rotor

8000

6×100ml

7280

18A-33

Fixed Rotor

12000

24 capillaries

15800
